EMC FILTER CNW 307
Filter combinations, single-stage Description The CNW 307 combined filter relieves the supply network by compensating for harmonic reactive power. The harmonic harmonics are reduced to THD < 60%. This improves efficiency and relieves the line. The mains choke also limits the mains interference that occurs, such as current peaks and voltage drops in the mains. To comply with standard EN 610003-2 or IEEE 519, we recommend using the CNW 898 series. The integrated mains filter dampens the very high asymmetrical and symmetrical HF currents caused by the converter. Advantages compact design various connections (terminal/cable/rail) possible quick and easy installation Damping of current harmonics Limitation of inrush and switch-on currents Reduction of mains interference, current peaks and voltage drops Increased service life of the IGBT Low-noise Typical Applications Applications: Interference suppression of frequency converters with IGBT’s with simultaneous reduction of harmonic harmonics PFC (Power Factor Correction) and commutation (current transfer between thyristors) in fast-switching power semiconductors. Reduction of THD values (Tolal Harmonic Distortion). Technical data According to: IEC/EN 60939 / EN 133200 Test voltage: L-L 2100 V, DC 1s, L-PE 2700 V, DC 1s Overload: 1.5 x I 1 min/h Climate category: DIN IEC 60068-1 (1) Voltage drop of the mains choke: The mains choke of the CNW 307/3 and CNW307/6 has a Uk of 4%. From 10 A, mains chokes have a Uk of 2%. Leakage current of the mains filter: The technical table shows the maximum leakage current under normal working conditions. If two phases are interrupted, the leakage current can be 6 times higher. For Europe: Frequency: 50 Hz Short-circuit voltage Uk: 2% (at 400V) Voltage drop: 4.6 V/strand For America: Frequency: 60 Hz Short-circuit voltage Uk: 4.8% (at 200 V) Voltage drop: 5.5 V/strand Type Nominal voltage[V] Nominal current[A] Inductance [mH] Leakage current [mA] Copper[kg] Weight[kg] CNW 307/3 Up to 3 x 500 3 9,70 >15 0,7 2,3 CNW 307/6 Up to 3 x 500 6 4,88 >15 0,8 2,8 CNW 307/10 Up to 3 x 500 10 1,46 >15 1,2 2,8 CNW 307/16 Up to 3 x 500 16 0,91 >15 1,9 3,9 CNW 307/25 Up to 3 x 500 25 0,58 >15 2,4 5,2 CNW 307/36 Up to 3 x 500 36 0,41 >15 3,5 5,8 CNW 307/50 Up to 3 x 500 50 0,29 >30 4,6 9,4 Dimensions in mm Type Options Connection Dimensions [mm] Terminal Image 1 Cable Image 2 L 1 L 2 L 3 B 1 B 2 H A1 A2 D CNW 307/3 4 mm² 1,5 mm² 167 153 136 90 60 175 1500 1000 7 CNW 307/6 4 mm² 1,5 mm² 167 153 136 90 60 175 1500 1000 7 CNW 307/10 4 mm² 1,5 mm² 167 153 136 90 60 175 1500 1000 7 CNW 307/16 6 mm² 2,5 mm² 207 193 176 90 60 175 1500 1000 7 CNW 307/25 6 mm² 4 mm² 307 293 276 90 60 175 1500 1000 7 CNW 307/36 10 mm² 6 mm² 307 293 276 90 60 175 1500 1000 7 CNW 307/50 16 mm² 10 mm² 387 373 356 90 60 175 1500 1000 7 Certifications
EMC FILTER CNW 304
Filter combinations, single-stage Description By using a mains choke, harmonics are reduced and the inrush current is limited. This improves efficiency and reduces the load on the line. Advantages quick and easy installation small footprint Reduction of cable strands in the control cabinet Damping of current harmonics Low-noise choke thanks to vacuum impregnation Inrush current limitation Mains choke standard for short-circuit voltage of 4% at rated current Typical Applications Suppression of frequency converters with IGBTs with simultaneous reduction of harmonics (according to VDE 0160/EN 61800-3 Class B) Technical data According to: IEC/EN 60939 / IEC 950 / UL 1283 Test voltage: L-L 2100 V, DC 1s, L-PE 2700 V, DC 1s Overload: 1.5 x I 1 min/h Climate category: DIN IEC 68 Part 1 25/085/21 Type Nominal voltage [V] Nominal current [A] Leakage current [mA] L [mH] Cx [µF] Cy [nF] Rx [k] Ry [k] CNW 304/80 3×400 80 >35 1,2 1,5 600 560 560 CNW 304/120 3×400 120 >35 0,5 3,5 870 560 560 CNW 304/150 3×400 150 >35 0,6 3,5 870 560 560 Dimensions in mm Type Connections Dimensions [mm] Terminal Ground L 1 L 2 L 3 B 1 B 2 H 1 CNW 304/80 50 mm² M10 330 315 290 190 120 216 CNW 304/120 50 mm² M10 440 420 400 280 200 248 CNW 304/150 50 mm² M10 440 420 400 280 200 248 Certifications

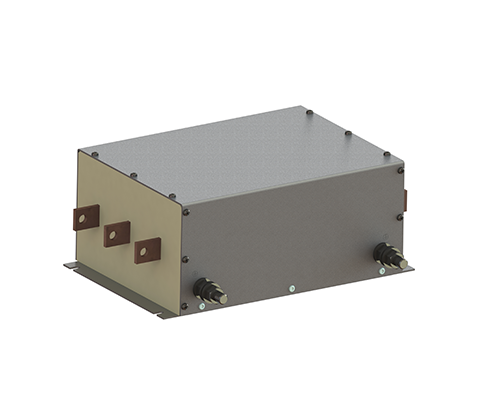

EMI-Filter CNW 107.3/690 and CNW 107.3/480
EMI-Filter N CNW 103 High-current line filter (3 conductors) DESCRIPTION The EMI filter is specifically for the suppression of high-current applications in wind energy and industrial applications designed. This filter series is for the voltage levels of 480V and 690V constructed. The filter can be delivered in various casing versions. So it can be adapted to different environmental conditions.There are also versions for offshore applications possible. ADVANTAGES specifically designed for high performances suitable for offshore applications compact design Good heat dissipation rail connector fast installation TYPICAL APPLICATIONS The EMI filter is specifically for the suppression of high-current applications in wind energy and industrial applications designed. TECHNICAL SPECIFICATION Conforming to: VDE 0565-3 / IEC 950 / UL 1283 Test voltage: L-N 2100 V,DC 1s, L/N-PE 2700 V,DC 1s Overload: 1,5 x I 1 min/h Climatic category: DIN IEC 68 Part 1 25/085/21 Rated voltage: 480 V Rated current: 280 – 3000 A Type Rated voltage [V] Rated current [A] Leakage current[mA] L[μF] Cx[μF] Cy[μH] CNW 107.3/280 3×480/ 690 3×280 <300 100 40 3,8 CNW 107.3/500 3×480/ 690 3×500 <300 100 40 3,8 CNW 107.3/700 3×480/ 690 3×700 <300 100 40 3,8 CNW 107.3/1000 3×480/ 690 3×1000 <300 100 40 3,8 CNW 107.3/1600 3×480/ 690 3×1600 <500 44 50 7,6 CNW 107.3/2500 3×480/ 690 3×2500 <500 44 50 7,6 CNW 107.3/3000 3×480/ 690 3×3000 <500 40 50 7,6 DIMENSIONS IN MM Type Connection PE-Connection L1[mm] L2[mm] L3[mm] L4[mm] B1[mm] B2[mm] L1[mm] L2[mm] L3[mm] CNW 107.3/280 30×5 M12 420 335 320 296 220 175 135 100 90 CNW 107.3/500 40×5 M12 420 335 320 296 220 175 135 100 90 CNW 107.3/700 40×10 M12 420 335 320 296 220 175 135 100 90 CNW 107.3/1000 40×10 M12 420 335 320 296 220 175 135 150 90 CNW 107.3/1600 50×10 M12 590 406 340 360 330 300 180 150 90 CNW 107.3/2500 80×15 M12 590 406 340 360 330 300 180 200 160 CNW 107.3/3000 120×15 M12 700 506 340 420 390 300 240 200 160 Data sheet Download our extensive catalog and discover many other REO products. Download Datenblatt Certifications
EMV Filter N CNW 105
Three-phase line filters (4 lines, single stage) (3A – 150A) DESCRIPTION NEW SERIES! The new series not only scores points for its faster delivery time, but also for its resource conservation and increased efficiency. Recommended filter for interference suppression according to EN 55011, Class A and EN 61800-3, Category C2. By using a REO three-phase line filter CNW 105 the noise level is reduced below the prescribed maximum value.REO line filters are suitable for individual and collective suppression. For collective suppression: As long as the rated current for each phase remains below the permissible extent, multiple devices can be suppressed. ADVANTAGES Small dimensions quick connection low-temperature rise touch-proof terminals good damping performance ata low leakage current TYPICAL APPLICATIONS Power supply units for data systems engineering, telecommunications, medical equipment and industrial applications TECHNICAL SPECIFICATION Conforming to: VDE 0565-3 / IEC 950 / UL 1283 Test voltage: L-L 2100 V, DC 1s, L-PE 2700 V, DC 1s Overload: 1,5 x I 1 min/h Climatic category: DIN IEC 68 Part 1 25/085/21 Type Rated voltage [V] Rated current [A] Leakage current [A][mA] Cx [μF] Cy nF] L [mH] R [MOhm] Frequency[Hz] N CNW 105/3 3×500 4×3 <1 0,5 30 4,0 1,12 50/60 N CNW 105/6 3×500 4×6 <1 0,5 30 2,4 1,12 50/60 N CNW 105/10 3×500 4×10 <1 0,5 30 1,0 1,12 50/60 N CNW 105/16 3×500 4×16 <1 1 43 1,6 1,12 50/60 N CNW 105/25 3×500 4×25 <1 1 43 1,4 1,12 50/60 N CNW 105/36 3×500 4×36 <1 2,2 44 1,2 1,12 50/60 N CNW 105/50 3×500 4×50 <1 2,2 44 0,75 1,12 50/60 N CNW 105/80 3×500 4×80 <3,5 3,3 111 0,5 1,12 50/60 N CNW 101/120 3×500 4×120 <3,5 3,3 111 0,36 1,12 50/60 CNW 105/150 3×500 4×150 <3,5 3,3 111 0,36 1,12 50/60 DIMENSIONS IN MM Type Housing Connection PE-Connection B1[mm] B2[mm] B2[mm] D[mm] H[mm] L1[mm] L2[mm] L3[mm] CNW 105/3 A Flat plug 6,3 mm AMP flat plug 53 – – 5,3 40 110 100 90 CNW 105/6 A Flat plug 6,3 mm AMP flat plug 53 – – 5,3 40 110 100 90 CNW 105/10 A Flat plug 6,3 mm AMP flat plug 53 – – 5,3 40 110 100 90 CNW 105/16 B Clamps 4mm² Earthing bolt (M6) 98 80 70 5,0 70 177 150 90 CNW 105/25 B Clamps 6mm² Earthing bolt (M6) 98 80 70 5,0 70 179 150 90 CNW 105/36 B Clamps10mm² Earthing bolt (M6) 148 135 120 7,0 70 269 240 160 CNW 105/50 B Clamps 25mm² Earthing bolt (M6) 148 135 120 7,0 70 278 240 160 CNW 105/80 B Clamps 25mm² Earthing bolt (M10) 168 155 140 7,0 90 303 240 160 CNW 105/120 B Clamps 50mm² Earthing bolt (M12) 168 155 140 7,0 90 331 240 160 CNW 105/150 B Clamps 50mm² Earthing bolt (M12) 168 155 140 7,0 90 331 240 160 Data sheet Download our extensive catalog and discover many other REO products. Download Datenblatt Certifications

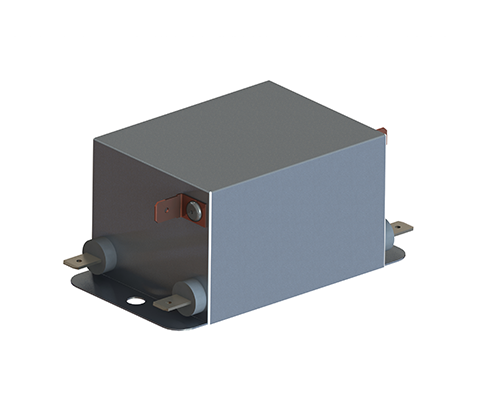

EMI-Filter CNW 102
Single-phase line filter (2 conductors, two-stage) DESCRIPTION Recommended filter for interference suppression according to EN 55011, Class B and EN 61800-3, Category C1. Cost-effective filter that is well-suited for direct mounting in the housing of an interference source due to its small dimensions and very good attenuation values in a two-stage design. The filter is also available as a version with low leakage current as well as a special medical version (without Y-capacitors). Optionally, the filter can also be supplied with overvoltage protection. A quick installation can be performed using connection with insulated flat connectors. However, versions with other connection options (terminal / wire) are also possible. ADVANTAGES Small dimensions quick connection touch-proof if used with insulated spade connectors very good damping performance at a low leakage current also as a medical version or with a lower leakage current available optional anti-surge protection UL approval for the complete model range – E217177 (not for N- and MED-versions) TYPICAL APPLICATIONS Applications: Switch-mode power supplies for industrial electronics, frequency converters for motor drives, power supply units, medical and telecommunication applications, DC applications TECHNICAL SPECIFICATION Conforming to: VDE 0565-3 / IEC 950 / UL 1283 Test voltage: L-N 2100 V, DC 1s, L/N-PE 2700 V, DC 1s Overload: 1,5 x I 1 min/h Climatic category: DIN IEC 68 Part 1 25/085/21 Type Rated voltage [V] Rated current [A] Leakage current [A][mA] Cx [μF] Cy nF] L [mH] R [kOhm] CNW 102/3 250 3 <3,5 0,94 20 13,6 560 CNW 102/6 250 6 <3,5 0,94 20 7,8 560 CNW 102/10 250 10 <3,5 0,94 20 3,6 560 CNW 102/16 250 16 <3,5 0,94 20 2,4 560 CNW 102/20 250 20 <3,5 0,94 20 2,0 560 CNW 102/3/N 250 3 <0,5 0,94 4,4 13,6 560 CNW 102/6/N 250 6 <0,5 0,94 4,4 7,8 560 CNW 102/10/N 250 10 <0,5 0,94 4,4 3,6 560 CNW 1022/16/N 250 16 <0,5 0,94 4,4 2,4 560 CNW 102/20/N 250 20 <0,5 0,94 4,4 2,0 560 CNW 102/3/MED 250 3 <0,005 0,94 – 13,6 560 CNW 102/6/MED 250 6 <0,005 0,94 – 7,8 560 CNW 102/10/MED 250 10 <0,005 0,94 – 3,6 560 CNW 102/16/MED 250 16 <0,005 0,94 – 2,4 560 CNW 102/20/MED 250 20 <0,005 0,94 – 2,0 560 DIMENSIONS IN MM Type Connection /PE-Connection B [mm] D [mm] H [mm] L1 [mm] L2[mm] L3[kOhm] CNW 102/3 Flat plug 6,3×0,8 50 5,3 40 87 75 65 CNW 102/6 Flat plug 6,3×0,8 50 5,3 40 87 75 65 CNW 102/10 Flat plug 6,3×0,8 50 5,3 40 87 75 65 CNW 102/16 Flat plug 6,3×0,8 53 5,3 40 110 100 90 CNW 102/20 Flat plug 6,3×0,8 53 5,3 40 110 100 90 Data sheet Download our extensive catalog and discover many other REO products. Download Datenblatt Certifications
