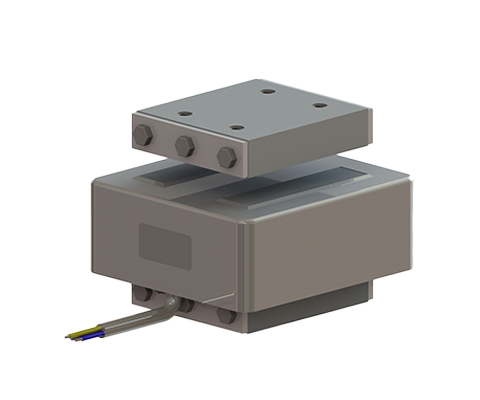

DESCRIPTION
Standard series, fully encapsulated, maximum power 3900 VA at 3000 1/min or 6000 1/min
- Mounting with blind tapped holes at the base of the magnet and armature
- Cable exit downwards with unshielded or shielded cable
ADVANTAGES
- Optimal size/performance ratio
- Good adjustability
- Maximum power 3900 VA
- Maximum tractive power 6900
- Low Profile
Typical applications
Packaging industry and weighing sector for feeding and sorting Automation process and assembly equipment which utilises electromagnetic
| Types | Max. rated air gap [mm] [mm] |
Power at 6000 1/min [VA] [VA] | Rated current = thermal rated current at 230V [A] | Peak tensile force at nominal air gap [N] | Power at 3000 1/min [VA] | Therm. rated current at 230V [A] | Peak tensile force at nominal air gap [N] | Weight Magnet [kg] | Weight Armature [kg] |
| REOVIB WI 121/10 | 2,5 | 320 | 1,4 | 230 | 280 | 1,2 | 229 | 2,1 | 0,34 |
| REOVIB WI 121/12 | 3 | 450 | 1,95 | 330 | 425 | 1,85 | 318 | 2,8 | 0,62 |
| REOVIB WI 121/14 | 3 | 1200 | 5,2 | 850 | 1100 | 4,8 | 1350 | 6,9 | 1,45 |
| REOVIB WI 121/16 | 3 | 2200 | 9,5 | 1590 | 1890 | 8,2 | 2620 | 10,5 | 2,6 |
| REOVIB WI 121/18 | 3 | – | – | – | 3900 | 16,9 | 6900 | 28 | 9 |
| Types | a | b | c | d | f1 | f2 | f3 | g | h | i | p | r |
| REOVIB WI 121/10 | 100 | 68 | 66 | – | 61,5 | 12 | 9 | 66 | 38 | 17,5 | 30 | M6 |
| REOVIB WI 121/12 | 100 | 100 | 66 | 40 | 61,5 | 15 | 9 | 66 | 70 | 17,5 | 30 | M6 |
| REOVIB WI 121/12 | 100 | 100 | 66 | 40 | 61,5 | 15 | 9 | 66 | 70 | 17,5 | 30 | M6 |
| REOVIB WI 121/14 | 155 | 110 | 108 | – | 90,5 | 23 | 15 | 108 | 68 | 26,5 | 50 | M10 |
| REOVIB WI 121/16 | 155 | 168 | 108 | 80 | 90,5 | 23 | 15 | 108 | 126 | 26,5 | 50 | M10 |
| REOVIB WI 121/18 | 230 | 170 | 169 | 65 | 128,5 | 42 | 18 | 169 | 120 | 47,5 | 75 | M12 |
