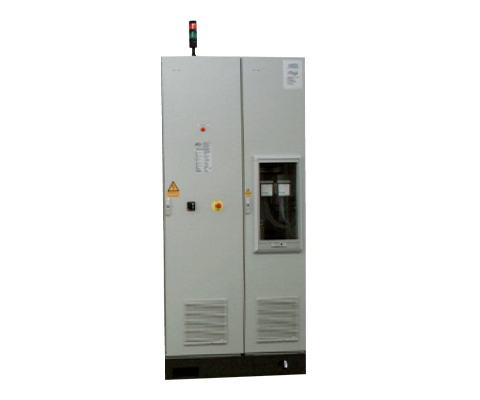

Three-phase AC/DC voltage supplies with separate winding and motor drive
Description
REOLAB 123
Three-phase AC/DC voltage supplies with separate winding and motor drive for testing/developing, e.g., AC and DC converters or auxiliary power converters.
REOLAB 124
Three-phase AC/DC voltage supplies with separate winding and motor drive. Used for motor testing.
Advantages
- no harmonics
- no EMC interference
- clean sinusoidal waveform
| Input voltage | 3 x 400 VAC |
| Output voltage | 0 – 2500 V or 0 – 5000 DC or 0 – 430 VAC |
| Output current | 60 ADC, 30 ADC, 335 AAC |
| Output power | 150 kW as standard version / 144 kVA |
| Switching group | Delta / Star / Star / 2 x B6U/li0 |
| Protection class | IP 20 |
| Frequency range | 50/60 Hz |
| Input voltage | 3 x 400 VAC |
| Output voltage | 0 – 500 VDC or 3 x 0 – 600 VAC or 0 – 300 DC |
| Output current | 200 ADC, 3 x 200 AAC, 15 ADC |
| Output power | 100kW as standard version / 208 kVA or 4.5 kW |
| Switching group | Star / Star / 2 x B6U |
| Protection class | IP 20 |
| Frequency range | 50/60 Hz |
*Of course, other voltages and power ratings can also be offered after consultation.
In addition, different operating options/operating concepts and industrial interfaces are possible.
All data and configurations can be found in our product datasheet.
