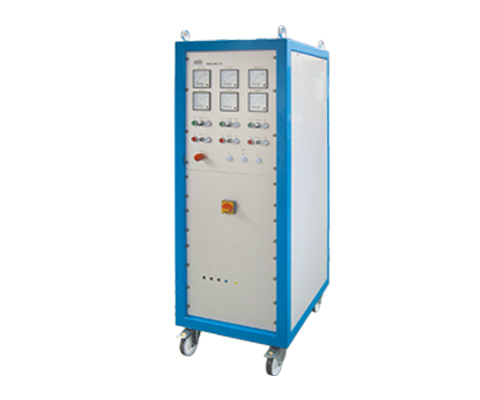

Three-phase-voltage supplies with separate windings
Description
Three-phase-voltage supplies with separate windings, motor drive and electronic voltage control with safety circuits and warning beacons are suitable for the endurance testing of cable terminations. The regulation precision of the output voltage is approx. 1.5%.
Advantages
- No harmonics waves
- No EMC interference
- Clean sinusoidal form
| Input voltage | 3 x 400 V L/L or 3 x 230 V L/N |
| Output Voltage | 3 x 0 – 450 VAC |
| Output current | 3 x 12 A – 3 x 63 AAC |
| Output power | 9,4 – 49 kVA als Standardausführung |
| Schaltgruppe | Stern / Stern |
| Protection Class | IP 20 in mobile housing |
| Frequency range | 50/60 Hz |
| Input voltage | 3 x 400 V L/L or 3 x 230 V L/N |
| Output voltage | 3 x 0 – 520 VAC |
| Output current | 3 x 10 AAC |
| Output power | 9 kVA as standard version |
| Schaltgruppe | Stern / Stern |
| Protection Class | IP 20 in mobile housing |
| Frequency range | 50/60 Hz |
*Of course, other voltages and power ratings can also be offered after consultation.
In addition, different operating options/operating concepts and industrial interfaces are possible.
All data and configurations can be found in our product datasheet.
