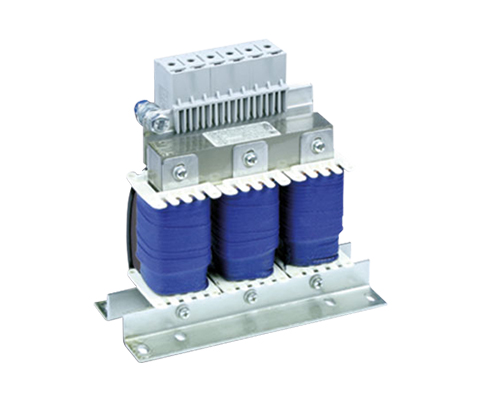

Two-phase Sinusoidal filter
ADVANTAGES
-
Low-temperature rise
-
Low-noise
-
Manufacturing according to UL Insulation System
E 251513 possible -
Easy installation
-
Adaptation to motor cables up to 1000 meters possible
-
Saving of the shielded cable possible
TYPICAL APPLICATIONS
Drive systems for motor drives: Mechanical engineering, Elevators / escalators, Pipes, Conveyor technology, Ventilation and air conditioning, Robotics, Automation technology, Power supplies and Wind turbines
TECHNICAL SPECIFICATION
- Ambient temperature: 50 ° C
- Protection rating: IP 00
- Insulation class: F
- Linearity: LN at 1.2 x IN u. ≥ 0.8 x LN at 1.5 x IN
- Test voltage: 3 kV
- Rated voltage: 230 V
- Uk: 6,15 %
- Overvoltage category: 2
- Pollution degree: 2
- Cooling: ON
- Switching frequency: ≥ 4 kHz
- Current ripple: ≤ 20% at 4 kHz
| Type | Nominal current [A] |
Inductance [mH] |
Resistance R20 [mΩ] |
Capacitance [µF] |
Power dissipation [W] |
Uk @ 230 V |
Uk @ 133 V |
Uk @ 400 V |
Copper [kg] |
| CNW 931 / 3 | 3 | 15 | 349,5 | 6,8 | 17 | 6,2 % | 10,6 % | 3,5 % | 0,15 |
| CNW 931 / 4 | 4 | 11,3 | 275,2 | 10 | 22 | 6,2 % | 10,7 % | 3,6 % | 0,23 |
| CNW 931 / 6 | 6 | 7,5 | 133,1 | 10 | 29 | 6,2 % | 10,6 % | 3,5 % | 0,29 |
| CNW 931 / 8 | 8 | 5,6 | 94,4 | 20 | 33 | 6,1 % | 10,6 % | 3,5 % | 0,33 |
| CNW 931 / 10 | 10 | 4,5 | 62,2 | 20 | 37 | 6,2 % | 10,6 % | 3,5 % | 0,53 |
| CNW 931 / 12 | 12 | 3,75 | 59,9 | 20 | 43 | 6,2 % | 10,6 % | 3,5 % | 0,64 |
| CNW 931 / 16 | 16 | 2,8 | 43,4 | 20 | 56 | 6,1 % | 10,6 % | 3,5 % | 0,82 |
