Accessories for variable transformers, duty cycle controllers
Description

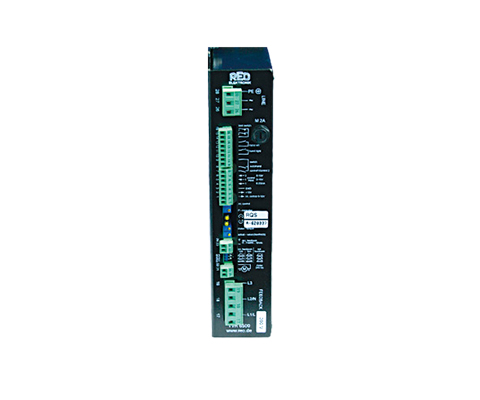

Control unit for motor-controlled variable transformers.
Adjustable power supplies in the mains voltage range as well as in the high-performance range are implemented in the largest states with variable transformers. It consists in the fact that it is not about the perception of adjusting the performance, only one thing belongs to also being constant. For this purpose, the variable transformers are equipped with a motor controller that is controlled by license control electronics.
With this one there is the possibility to take care of a certain control electronics for the control of direct current motors with a permanently excited field.
Advantages
- easy handling
- for voltage stabilizers or as current / voltage regulators
- Installation horizontally or vertically
Technical specification
| Set point | 0 … 10 V / 0 … 20 mA |
| Witching | Switching for tow set points (closed = second set point) Switching for testing (closed = manual operation) (without regluation) |
| Reference voltage | Internal 10 V – Reference voltage |
| Internal set point setting option | possible |
| Measured voltage input | 0 … 10 V. DC |
| Measured voltage input | 0 … 10 V SS AC / 0 … 7 Veff AC |
| Internal voltage measurement transformers | 3 x 0 – 500 V or after switching (Internal) 3×0-500V or 0 – 500 V |
|---|---|
| Inputs for limit switches (Inhibit) | |
| Proportional speed control correction | |
| Adjustable motor response | |
| Adjustable regulation characteristic (P-term) | |
| Dead time | ca. 200ms |
| Design | Built into a snap-on module for DIN rail mounting |
| Connection | Terminal covers |
| Motor voltage | 24 V, DC – 1 A max. |
| Supply voltage | 80V – 265 V AC |
| Set point | 0 … 10 V / 0 … 20 mA |
