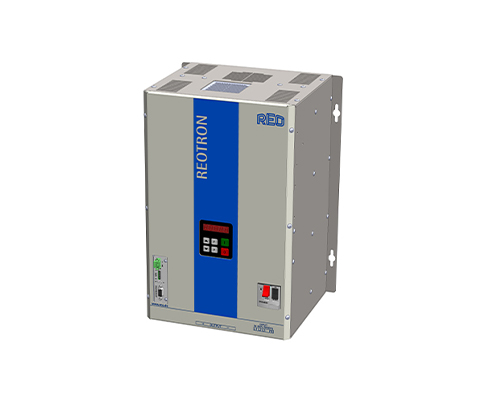

DC-Power supply REOTRON SMP-SMB

Installation – Mounted on mounting wall

DESCRIPTION

The DC power supplies from the REOTRON SMP series are primary switched switching power supplies with galvanic isolation from the input to the output. The devices can be used as voltage, current or power regulators.

Operation

The unit can be operated from an internal display, external control signals of 0…+10V, 0(4)…20mA or optionally by a fieldbus interface such as DeviceNet, ProfiBus, CanBus, EtherCAT, EtherNet/IP and ProfiNet protocols.

Input devices

The device input is designed for connection to a three-phase mains 3 x 400 V, 50/60 Hz. The compliance of EMC standards is guaranteed by an input-sided PFC-mains filter.

Design

The devices have a compact design in a 19 inch rackmount chassis and can be delivered as a installation ready control cabinet version or as a tabletop unit (lab version). The devices are air- or water-cooled.

Connection

The SMP‘s are connected via screw terminals and with cooper terminal buses at high output currents. Like all REO-products, the REOTRON SMP‘s are also available as customized versions.

ADVANTAGES

Very good cos Φ of 0,95

Compact dimensions

Series or parallel connection

Air or water- cooling

Many options of combinations for different requirements with other
REO product ranges

TECHNICAL SPECIFICATION

Type REOTRON SMP-SMB control cabinet module

Input voltage 3x400V, +/- 10%, 50/60 Hz

Ripple P-P 100 mV/ 200 mV

Setpoint Input 0…+10 V, DC, 0(4)…20mA, Potentiometer 10 kOhm internally via the control display

Actual value output 0…+10 V, DC, 0(4)…20mA, internally via operating display

Interfaces (Option) ProfiBus-DP, DeviceNet, CAN-Bus, ProfiNet, EtherNet/IP, EtherCAT

Control Accuracy 1% of the nominal value (higher on reguest)

Release 24 V, DC or contact

Protection Class Control cabinet installation IP 20

2 x Status Relays Changeover 250 V, 1A

Efficiency > 85%

Cos Φ 0,95

Operating Temperature 0… 40° C

Standards EN 50178, EN 61000-6-2, EN 61000-6-4

Size Width Height Depth

Small(S) 300 400 230

Medium (M) 330 450 250

Large (L) 400 480 300

Extra large (XL) 600 600 300

REO series Small(S) SMP-SMB 25-40 Small(S) SMP-SMB 25-100 Medium(M) SMP-SMB 25-200 Medium(M) SMP-SMB 25-300 Large (L) SMP-SMB 25-400 Large (L) SMP-SMB 25-500 Large (L) SMP-SMB 25-600

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…25 0…25 0…25 0…25 0…25 0…25 0…25

Output current [A] 0…40 0…100 0…200 0…300 0…400 0…500 0…600

REO series Small(S) SMP-SMB 50-20 Small(S) SMP-SMB 50-50 Medium(M) SMP-SMB 50-100 Medium(M) SMP-SMB 50-150 Large(L) SMP-SMB 50-200 Large(L) SMP-SMB 50-250 Large(L) SMP-SMB 50-300

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…50 0…50 0…50 0…50 0…50 0…50 0…50

Output current [A] 0…20 0…50 0…100 0…150 0…200 0…250 0…300

REO series Small(S) SMP-SMB 80-13 Small(S) SMP-SMB 80-31 Medium(M) SMP-SMB 80-63 Medium(M SMP-SMB 80-94 Large(L) SMP-SMB 80-125 Large(L) SMP-SMB 80-156 Large(L) SMP-SMB 80-188

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80

Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188

REO series Small(S) SMP-SMB 150-7 Small(S) SMP-SMB 150-17 Medium(M) SMP-SMB 150-33 Medium(M) SMP-SMB 150-50 Large(L) SMP-SMB 150-67 Large(L) SMP-SMB 150-83 Large(L) SMP-SMB 150-100

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…150 0…150 0…150 0…150 0…150 0…150 0…150

Output current [A] 0…7 0…17 0…33 0…50 0…67 0…83 0…100

REO series Small(S) SMP-SMB 250-4 Small(S) SMP-SMB 250-10 Medium(M) SMP-SMB 250-20 Medium(M) SMP-SMB 250-30 Large(L) SMP-SMB 250-40 Large(L) SMP-SMB 250-50 Large(L) SMP-SMB 250-60

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…250 0…250 0…250 0…250 0…250 0…250 0…250

Output current [A] 0…4 0…10 0…20 0…30 0…40 0…50 0…60

REO series Small(S) SMP-SMB 400-2,5 Small(S) SMP-SMB 400-6,25 Medium(M) SMP-SMB 400-12,5 Medium(M) SMP-SMB 400-18,75 Large(L) SMP-SMB 400-25 Large(L) SMP-SMB 400-31,25 Large(L) SMP-SMB 400-37,5

Output power [W] 0…1000 0…2800 0…5200 0…7600 0…10000 0…12800 0…15000

Output voltage [V] 0…400 0…400 0…400 0…400 0…400 0…400 0…400

Output current [A] 0…2,5 0…6,25 0…13 0…19 0…25 0…32 0…37,5

REO series Small(S) SMP-SMB 600-2 Small(S) SMP-SMB 600-4 Medium(M) SMP-SMB 600-8 Medium(M) SMP-SMB 600-13 Large(L) SMP-SMB 600-17 Large(L) SMP-SMB 600-21 Large(L) SMP-SMB 600-25

Output power [W] 0…1200 0…2400 0…4800 0…7800 0…10200 0…12600 0…15000

Output voltage [V] 0…600 0…600 0…600 0…600 0…600 0…600 0…600

Output current [A] 0…2 0…4 0…8 0…13 0…17 0…21 0…25

* Higher services on request
