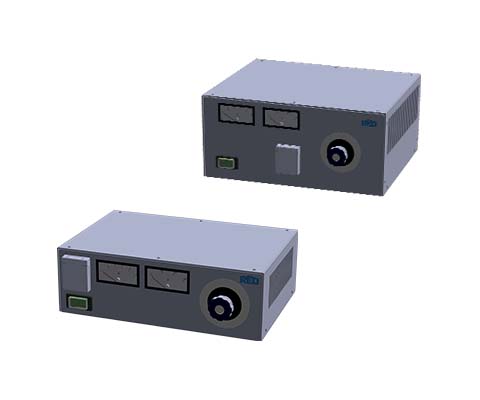

REOLINE Laboratory Power Supplies (analog, auto-windings)
DESCRIPTION
The laboratory variable transformers from the REOLINE Plus AC-S/A series are equipped with an analog display, economy winding and continuously adjustable output voltage of 0..250 VAC. The absolute zero position results in a de-energized state at position 0.
ADVANTAGES
- according to IEC/EN 61558-2-13 IEC/EN 61010-1
- Mains lead 2 m long with plug with earth socket
- Illuminated power switch with integrated thermal short-circuit protection
- Toroidal variable-ratio transformer with absolute zero position
- Analogue or digital voltmeter and ammeter at the output
- Earthing contact socket or safety labs at the output
- Short time overload possible
- Clean sine wave of the AC output voltage
- Easy connectivity
- Does not generate electromagnetic interference
- Modifications on request
- Inrush-current limitation optional
TYPICAL APPLICATIONS
- Laboratory
- Test field
- Workshop and service
| Input voltage | 230 V |
| Output voltage | 0 – 250 V |
| Output current | 0,6 – 8 A |
| Output power | 0.15 – 2.00 kVA |
| Frequency | 50 / 60 Hz |
| Vector group | Spar |
| Max. Ambient temperature |
+ 40° |
| IP code | IP40 |
| Produced in accordance with | EN 61010-1 / VDE 0441 Part 1 |
