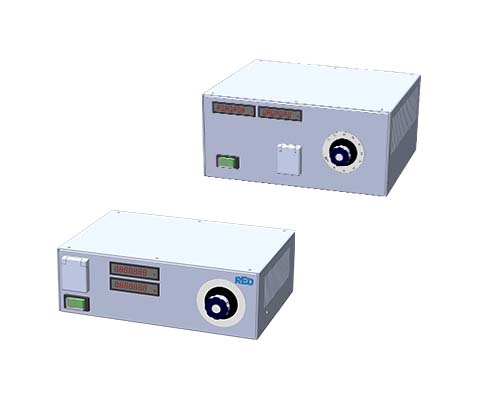

REOLINE Laboratory Power Supplies (digital, separate winding)
Description
The laboratory variable transformers from the REOLINE Plus DC-SG/D series are equipped with a digital display, separate winding and continuously adjustable output voltage of 0..200 VDC. The absolute zero position results in a de-energized state at position 0.
Advantages
- 2m long mains connection cable
- Illuminated power switch with integrated thermal short-circuit protection
- Toroidal variable transformer with absolute zero position
- 4mm safety sockets on the output
- Short-term overload possible
- Simple connection option
- Does not generate EMC interference
- Modifications on request
- Residual ripple 48%
- Inrush current limitation optional
Typical Applications
- Laboratory
- Test field
- Workshop and service
| Input voltage | 230 V |
| Output voltage | 0 – 200 V |
| Output current | 0,6 – 8 A |
| Output power | 120 – 1600 W |
| Frequency | 48% |
| Switching group | li0 |
| Max. ambient temperature | + 40° |
| Protection | IP20 |
| Produced in accordance with | IEC/EN 61558-2-4, IEC/EN 61558-2-13, IEC/EN 61010-1 |
