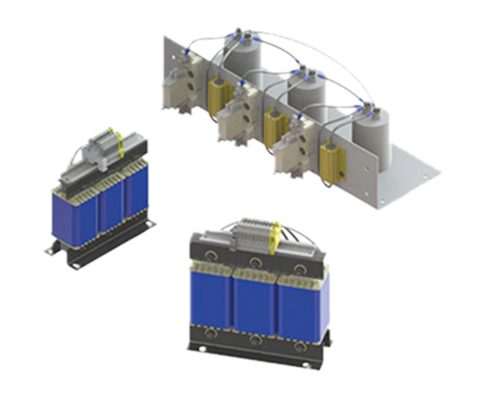

HARMONICFILTER CNW 8981- 60 Hz IP00

DESCRIPTION

Reduce Harmonics – save up to 30% energy costs.
The REOWAVE®passive filters harmonics caused by the B6 circuit (thyristor, diode bridge, etc.) and motor drives. The supply network is relieved by compensating the harmonics reactive power. This enables cost savings in material selection and energy consumption. Starting currents and current peaks are greatly attenuated.This increases the service life and reliability of electrical systems. Due to the compact and ready-build an easy installation is possible. The REOWAVE®passive helps to comply with international power quality standards IEEE 519 or EN 61000-3.

ADVANTAGES

Reduction of the THDI value
Increasing network stability
Reduction of the input current up to 30%
Suitable for installation in control cabinets
easy integration into existing systems
Increased reliability of electrical installations

TECHNICAL SPECIFICATION

According to: EN 60289 / EN 61558
Test voltage: LL 2500 V, DC 1min; L-PE 2500 V, DC 1min
Insulation class: T40/F
Protection rating: IP00
Climatic category: DIN IEC 60068-1
Protection: IP 00 (also available as IP20 version)
Nominal voltage: 480V / 60 Hz
Standards: IEEE 519, EN 61000-3-12, EN 61000-3-2, IEC 61000-3-4

Image No.	Type CNW / Choke 1/ Choke 2	Rated current [A]	Loss [W]	Main choke 1 [mm]					Absorber circuit choke 2 [mm]					Capacitors [mm]							Weight [kg]
Image No.	Type CNW / Choke 1/ Choke 2	Rated current [A]	Loss [W]	L	B1/B2	H	N1	N2	L	B	H	N1	N2	L	B	H	N1	N2	N3	N4	Weight [kg]
1/4	8981/9	9	120	190	92	210	170	68	155	77	155	130	57	500	200	100	450	470	100	–	16,2
1/4	8981/12	12	120	190	92	210	170	68	155	92	185	130	72	500	260	230	450	470	100	–	17,5
1/4	8981/16	16	160	230	90	258	176	71	190	82	210	170	58	500	200	100	450	470	100	–	25
2/4	8981/22	22	230	230	114	260	176	95	190	82	210	170	58	500	350	100	450	470	100	125	31,4
2/4	8981/32	32	241	240	117	270	185	95	210	97	238	175	77	500	200	230	450	470	100	125	40,4
2/4	8981/36	36	300	240	132	270	185	109	210	97	238	175	77	500	200	230	450	470	100	125	41,5
1/4	8981/45	45	313	300	120	335	224	94	210	107	238	175	87	500	200	100	450	470	100	–	55,1
3/4	8981/55	45	420	300	152	330	224	119	210	117	238	175	97	500	350	200	450	470	100	125	57,8
3/4	8981/70	70	487	300	165	330	224	132	230	114	260	176	95	500	260	230	450	470	100	–	67,3
3/4	8981/90	90	580	360	193	330	264	167	230	114	263	176	95	500	260	100	450	470	100	–	81,8
3/6	8981/110	110	710	420	189	367	316	159	240	122	280	185	100	500	350	230	450	470	100	125	107,5
3/6	8981/145	145	860	420	204	369	316	174	265	133	270	200	103	500	350	230	450	470	100	125	128

Dimensions in mm

Image No.	Type CNW / Choke 1/ Choke 2	Nominal current [A]	Loss [W]	Main choke 1 [mm]					Absorber circuit choke 2 [mm]					Capacitors [mm]							Weight [kg]
Image No.	Type CNW / Choke 1/ Choke 2	Nominal current [A]	Loss [W]	L	B1/B2	H	N1	N2	L	B	H	N1	N2	L	B	H	N1	N2	N3	N4	Weight [kg]
3/6	8981/180	180	1000	420	234	368	316	204	300	135	315	224	107	500	260	200	450	470	100	–	157
3/6	8981/200	200	1100	420	234	369	316	204	300	150	280	224	120	500	260	400	450	470	100	–	165
3/6	8981/230	230	950	480	220	417	356	184	300	170	280	224	135	500	350	100	450	470	100	125	175
3/6	8981/270	270	1140	480	250	416	356	214	360	223	310	264	142	500	200	300	450	470	100	–	223
3/6	8981/330	330	1570	480	250	465	356	214	360	223	310	264	142	500	370	160	450	470	100	125	243
3/6	8981/370	370	1680	480	250	467	356	214	420	206	364	316	143	500	500	160	450	470	100	275	252
3/6	8981/400	400	1410	480	250	464	356	214	420	204	363	316	143	500	370	400	450	470	100	125	257
3/6	8981/450	450	1500	480	250	510	356	214	420	220	363	316	158	500	550	160	450	470	100	275	284
3/6	8981/550	550	1850	480	250	506	356	214	420	235	364	316	174	500	550	160	450	470	100	275	298
3/6	8981/650	650	2090	480	250	589	356	214	420	268	363	316	204	500	550	510	450	470	100	275	357
