IP54 or IP20
Description

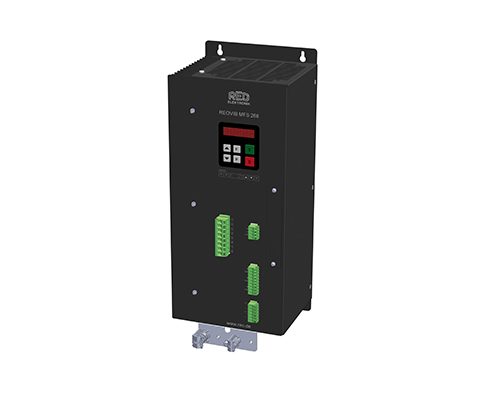

High-power version of the REOVIB MFS 268 frequency-control
device, can be used for mains voltages of 400 V with max.
8 or 16 A output current and for mains voltages of 230 V with
max. 12, 16, 32 A output current. Available as IP20 versions
for installation in control cabinets and also as IP54 standalone
units for 230 V and 12/16 A. We are also delighted to offer
you a suitable control cabinet system with client specific
requirements. Special designs of the REOVIB MFS 268 HP can
also be implemented if required
Advantages
- Independent of the mains input frequency
- Able to automatically determine the resonant frequency of the vibratory conveyor system (with additional vibration amplitude sensor) and regulate the vibration amplitude and maintain a constant feed rate irrespective of load or changes in the mechanical system
- Field bus interfaces: ProfiNet, EtherNet/IP, EtherCAT, CAN-Bus, ProfiBus, DeviceNet
- Available with UL/CSA approval depending on the type (Optional)
- Conveyor frequencies are adjustable between 5…300 Hz
- Mains voltage compensation with constant amplitude
- All settings can be made using the integrated display
- Sinusoidal output current
- Can be used on 400 V mains input
- User settings can be stored
- Versions available with fill level/overflow control
- Versions available in various protection classes and connector options
- MFS 269 HP is available with an AC output signal for use with permanent-magnet armature
| Mains input | 230/ 400 V Auto detect |
| Mains frequency | 50 / 60 Hz +/- 3 Hz |
| Output voltage | 0 … 205/ 0…360 V |
| Output current | max. 16 |
| Vibration frequency | 0 … 150 Hz |
| Setpoint value | Display, Poti, 0 … 10 V, 0 (4) … 20 mA |
| Status signal | Relais changer 250 V, 1 A |
| Ext. Enable | 24 V DC, Switch |
| Valve outlet | – |
| Sensor supply | 24 V DC |
| Setting Umin/ Umax | Display |
| Soft start adjustable | 0…60 Sec. |
| Fill level / overflow control | PNP, 24 V DC (Option) |
| Coarse-/fine control | ✓ |
| Vibration amplitude regulation | ✓ |
| Resonant frequency search | ✓ |
| Selectable cycle operation | ✓ |
| Sensor time out monitor | ✓ |
| Mains voltage compensation | ✓ |
| Field bus interfaces | ProfiNet, Ethernet/IP, EtherCat, Profibus-DP, CAN-Bus, DeviceNet, |
| Conformity | CE, RoHS |
| Protection class | IP20 |
All data and configurations can be found in our product data sheet.
