IP54 or IP20
Description

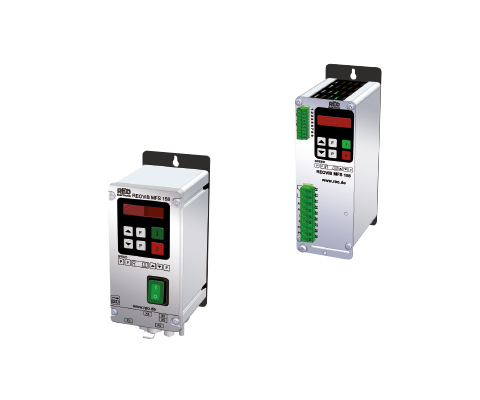

Frequency converters in the REOVIB MFS 158 and REOVIB MFS 168 series for vibratory conveyor technology offer the option of operating the vibratory conveyor at an optimal vibration frequency for the material – completely independently of the mains input frequency.
Devices in the REOVIB MFS 158 series are available with a max. output current of 4 A and the devices in the REOVIB MFS 168 series are available with a max. output current of 3 A, 6 A and 8 A. Both series are available as IP20 versions for installation in control cabinets or as IP54 standalone units.
The IP54 housings are available with various connection options:
- Input cable/output cable
- Input cable/output socket
Complete cable connection solution for mains, output and control connections
(For REOVIB RTS RS6/539-559). - Complete cable connection solution for mains, output and control connections
Advantages
- Inexpensive frequency-control devices with the vital functionality
- Frequency-control device for controlling a vibratory conveyor independently of the mains input frequency
- Conveyor frequencies are adjustable between 35…140 Hz
- Mains voltage compensation with constant vibration amplitude
- All settings can be made using the integrated display
- Sinusoidal output current
- Can be used on 110 V or 240 V autom. Detection
- User settings can be stored
- Fill level/overflow control
- Versions available in various protection classes and connector options
| Mains input | 110/ 230 V autom. recognition |
| Mains frequency | 50 / 60 Hz +/- 3 Hz |
| Output voltage | 0 … 100V/ 0…205 V |
| Output current | max. 4 A |
| Vibration frequency | 35 … 140 Hz |
| Setpoint value | Display, Poti, 0 … 10 V, 0 (4) … 20 mA |
| Status signal | Relais changer 250 V, 1 A |
| Ext. Enable | 24 V DC, Switch |
| Sensor supply | 24 V DC |
| Setting Umin/ Umax | Display |
| Soft start | adjustable 0…4 Sec. |
| Fill level/overflow control | PNP, 24 V DC (Option) |
| Coarse/fine control | ✓(Option) |
| Vibration amplitude control | – |
| Resonant frequency search | – |
| Mains voltage compensation | ✓ |
| Conformity | CE, RoHS |
| Protection class | IP20/ IP54 |
All data and configurations can be found in our product data sheet.
