IP54 or IP20
DESCRIPTION
A high-performance version of the frequency control device REOVIB MFS 268, can be used for mains voltages of 400 V with max. 16A output current. Available as IP20 control cabinet versions.
We also offer a suitable control cabinet system according to customer-led design. Special designs of the REOVIB MFS 268 HP can also be converted.
Interfaces
‘ProfiBus
EtherCat
ProfiBus
EtherNet/IP
CAN
DeviceNet
In addition, it is possible to automatically determine the resonance frequency of the oscillation system and to control the oscillation amplitude to constant values using the system patented by REO. Furthermore, various sensor and valve logic links can be programmed.

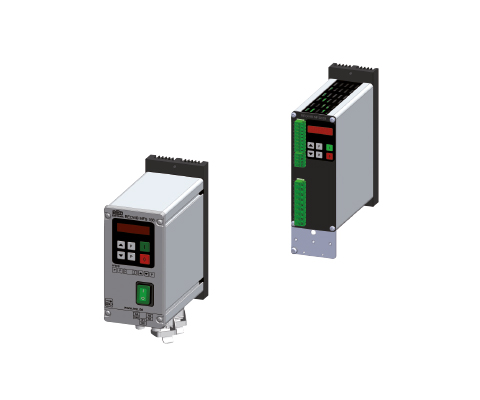

Devices in the REOVIB MFS 158 series are available with a max. output current of 4 A and the Devices in the REOVIB MFS 168 series are available with a max. output current of 3 A, 6 A and 8 A. Both series are available as IP20 versions for installation in control cabinets or as IP54 standalone units.
The IP54 housings are available with various connection options:
- Input cable/output cable
- Input cable/output socket
Complete cable connection solution for mains, output and control connections
(For REOVIB RTS RS6/539-559). - Complete cable connection solution for mains,
output and control connections
ADVANTAGES
- Frequency-control device for controlling a vibratory conveyor independently of the mains input frequency
- Automatic detection of the resonant frequency of the vibratory conveyor system (with additional vibration amplitude sensor) and option to regulate the vibration amplitude – Constant feed rates can be achieved independently of load or changes in the mechanical system
- Conveyor frequencies are adjustable between 35…140 Hz
- Mains voltage compensation with constant amplitude
- All settings can be made using the integrated display
- Sinusoidal output current
- Can be used on 110 V or 240 V autom. Detection
- User settings can be stored
- Fill level/overflow control
- Versions available in various protection classes and connector options
| Mains input | 110/ 230 V autom. recognition |
| Mains frequency | 50 / 60 Hz +/- 3 Hz |
| Output voltage | 0 … 100V/ 0…205 V |
| Output current | max. 3 A / 6 A / 8 A |
| Vibration frequency | 30 … 140 Hz |
| Setpoint value | Display, Poti, 0 … 10 V, 0 (4) … 20 mA |
| Status signal | Relais changer 250 V, 1 A |
| Ext. Enable | 24 V DC, Switch |
| Sensor supply | 24 V DC |
| Setting Umin/ Umax | Display |
| Soft start | adjustable 0…4 Sec. |
| Fill level/overflow control | PNP, 24 V DC (Option) |
| Coarse/fine control | ✓(Option) |
| Vibration amplitude control | ✓(Option) |
| Resonant frequency search | ✓(Option) |
| Mains voltage compensation | ✓ |
| Conformity | CE, RoHS |
| Protection class | IP20/ IP54 |
Integrate data sheet
All data and configurations can be found in our product data sheet.
