Inductive Load Units
Description

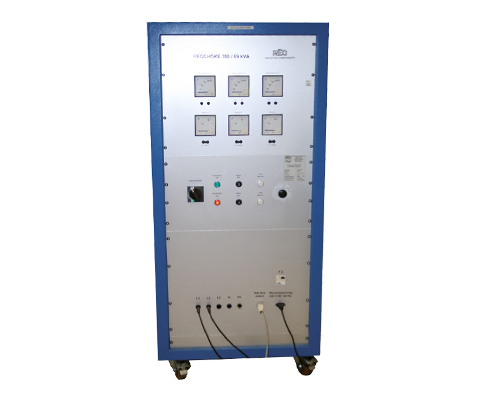

Infinitely adjustable three-phase choke load consisting of a three-phase variable autotransformer and a three-phase iron core choke connected on the secondary side, for testing converters and power supplies with reactive current. The reactive current can be adjusted from approx. 5% to 100% using the Min/Max pushbuttons on the variable autotransformer. With built-in digital measuring instruments for current and voltage.
Technical data
| Voltage | 3 x 400 V |
| Frequency | 50 Hz |
| Current | 3 x 2 – 100 A |
| Power | 3 x 0.46 – 23 = 69 kVA |
| Connection | Star / Autotransformer |
| AC Motor Drive | 230 V 50 Hz |
| Adjustment Time approx. | 30 seconds |
| Protection class | IP 20 |
All data and configurations can be found in our product datasheet.
