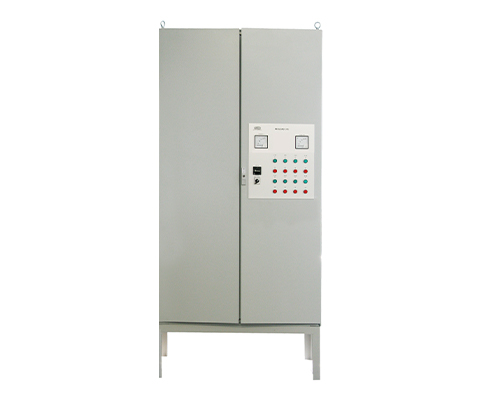

Ohmic Load Units
ADVANTAGES
- 17 fixed stages for testing switch contacts in accordance with IEC 60669-1-3.1 and IEC 61058-1/A2
- All 17 stages are connected in series and can be bridged via contactors
- High precision
- The required resistance values are able to be set via Ethernet connection
- Low-inductance
- Switching by means of contactors while ON load
TECHNICAL SPECIFICATION
| Resistance | Current | Power | Tolerance | Voltage max. | Total power of all resistances |
| 0,1 Ω | 16 A | 25,6 W | +/- 5% | 265 VAC or less from the 0,1 Ohm to the 10 Ohm stage | 17,091 kW |
|---|---|---|---|---|---|
| 0,1 Ω | 16 A | 25,6 W | |||
| 0,2 Ω | 16 A | 51,2 W | |||
| 0,3 Ω | 16 A | 76,8 W | |||
| 0,4 Ω | 16 A | 102,4 W | |||
| 1 Ω | 16 A | 256 W | |||
| 2 Ω | 16 A | 512 W | |||
| 3 Ω | 16 A | 768 W | |||
| 4 Ω | 16 A | 1024 W | |||
| 10 Ω | 16 A | 2560 W | |||
| 10 Ω | 15 A | 4500 W | |||
| 30 Ω | 10 A | 3000 W | |||
| 40 Ω | 7,5 A | 2250 W | |||
| 100 Ω | 3 A | 900 W | |||
| 200 Ω | 1,5 A | 450 W | |||
| 300 Ω | 1 A | 300 W | |||
| 400 Ω | 0,75 A | 225 W | |||
| 1000 Ω | 0,3 A | 90 W |
