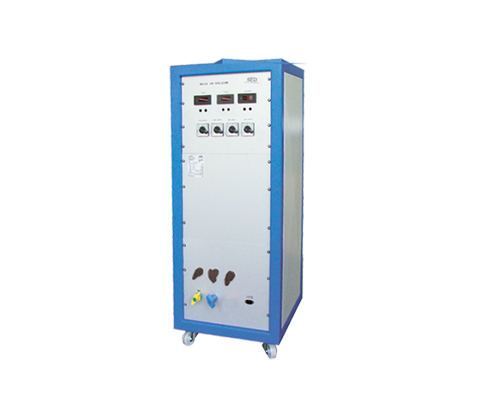

REO Three-Phase Resistive Load
Description
Optional liquid cooling of our test equipment allows for a compact design with lower weight and a high protection class. With liquid-cooled resistor load units from REO, the energy dissipated in the water can be sustainably integrated into the heating process of the
company and thus contribute positively to the overall energy efficiency of the company.
The units cooled in this way generate less waste heat overall – this is a great advantage, especially in smaller halls or at high ambient temperatures.
Advantages
- four three-phase fixed stages for testing auxiliary converters with active power
- Switching individual stages on and off under load using illuminated pushbuttons
- Display of voltages, currents, and direction of rotation
- upstream chokes for damping voltage peaks
- Outputs for current and voltage measurement
- Connections on terminals located inside the control cabinet
TECHNICAL DATA*
| Nominal Voltage | 3 x 440 V L/L or 3 x 254 V L/L 50/60Hz | |||
|---|---|---|---|---|
| Currents | 3 x 8 A | 3 x 15.7 A | 3 x 31.5 A | 3 x 63 A |
| Power | 6 kW | 12 kW | 24 kW | 48 kW |
| Total Power | 90 kW | Frequency | 50/60 Hz | |
| Protection class | IP 20 | |||
