IP54 or IP20
DESCRIPTION
The REOVIB SMART series includes phase angle control units for use in vibratory conveyor applications.

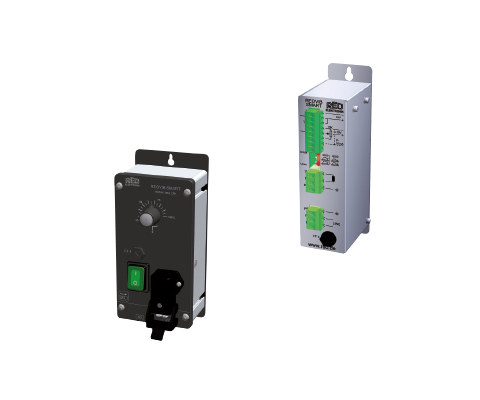

The devices offer the most important functions for use in vibratory conveyor technology and therefore represent a cost-effective option for controlling vibratory conveyors – and in a high-quality design. The devices are available in various protection classes – as a control cabinet installation module in IP20 or as a housing variant in IP54 for direct mounting on the application. The housing variants with protection class IP54 are available in different versions:
- Input cable/output cable
- Input cable/output socket
- Complete cable connection solution for mains, output and control connections
The REOVIB SMART ATS 100 devices are available in an IP54 housing design with output currents up to 15 A and are UL-listed.
ADVANTAGES
- Cost-effective phase-angle control systems with vital functionality
- IP54-Version for mounting directly on the vibrating machine or IP20-Version fas a module for mounting in a switch cabinet
- Versions available with UL approval (SMART ATS 100)
- Output current up to 6A
TYPICAL APPLICATIONS
| Mains input | 110/ 230 V switchable |
| Mains frequency | 50 / 60 Hz +/- 3 Hz |
| Output voltage | 20 … 100V/ 40…210 V |
| Output current | max. 6A |
| Vibration frequency50Hz | 50 Hz / 100 Hz |
| Vibration frequency 60Hz | 60 Hz / 120 Hz |
| Setpoint value | Poti, 0 … 10 V, 0 … 20 mA |
| Ext. Enable | 24 V DC, Switch |
| Setting Umin/ Umax | Internal potentiometer |
| Soft start | fixed |
| Mains voltage compensation | – |
| Conformity | CE, RoHS |
| Protection class | IP20/ IP54 |
| Ambient temperature | 0…45°C |
All data and configurations can be found in our product data sheet.
<a href=”https://reo.de/wp-content/uploads/2021/10/REOVIB-SMART.pdf”>Download Datenblatt</a>
Optional UL-certified
