IP00, for assembly on a DIN rail
DESCRIPTION

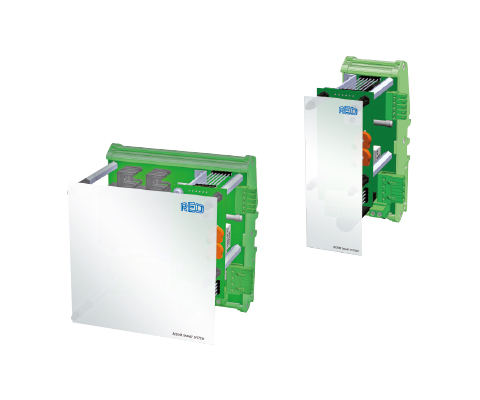

REOVIB SMART SYSTEM MINI basic module
REOVIB SMART SYSTEM basic module in open design for assembly on a DIN rail with an output
channel of max. 6A with fill level/overflow control.
The basic module has a supply for expansion modules, so further output modules up to a total
current of 10A can be connected.
channel of max. 6A with fill level/overflow control.
The basic module has a supply for expansion modules, so further output modules up to a total
current of 10A can be connected.
REOVIB SMART SYSTEM MINI expansion module
In open design for DIN rail mounting. An expansion module has one output channel max. 1A and can be set up together with the basic module and several expansion modules.
ADVANTAGES
- Cost-effective phase-angle control systems with vital functionality
- Can be used as a standalone device or in modular design for control of a complete feed system
- Output current up to 6A
- DIN rail mounting
- Versions available with fill level/overflow control
TYPICAL APPLICATIONS
Weighing systems, multiple-head weighing wagon, conveyor & assembly automation, sorting systems
| Type | SMART mini Basic module | SMART mini Expansion module |
| Mains input | 110/ 230 V autom. recognition | via SMART mini Basic module |
| Mains frequency | 50 / 60 Hz +/- 3 Hz | via SMART mini Basic module |
| Output voltage | 20 … 100V/ 40…210 V | 20 … 100V/ 40…210 V |
| Output current | max. 6 A | max. 6 A |
| Vibration frequency | 50 … 100 Hz (60 / 120 Hz) | 50 … 100 Hz (60 / 120 Hz) |
| Setpoint value | Poti, 0 … 10 V, 0 (4) … 20 mA | Poti, 0 … 10 V, 0 (4) … 20 mA |
| Ext. Enable | 24 V DC, Switch | 24 V DC, Switch |
| U min / U max | internal potentiometer | internal potentiometer |
| Soft start | fixed | fixed |
| Max. Output current from all outputs |
15 A | – |
| Fill level / overflow control | – | – |
| Conformity | CE, RoHS | CE, RoHS |
| Protection class | IP00 | IP00 |
