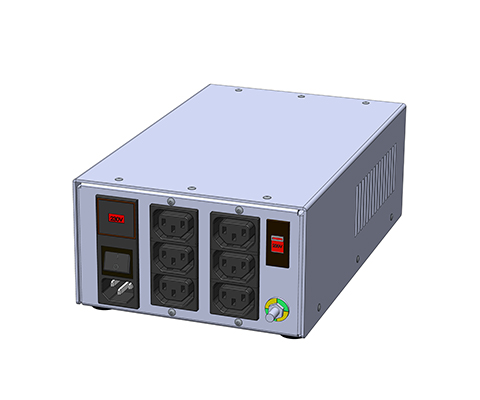

Transformers for medical technology
DESCRIPTION
Medical systems must safely comply with the leakage currents required by the standard. The TÜV-tested REOMED I isolating transformers are tried and tested devices for use with all electrical systems in medical rooms – they limit the leakage current and thus help to ensure the safety of the operator and patient. In addition to excellent efficiency and simple connection options, REOMED I isolating transformers are characterized by a very low stray magnetic field and a high level of safety. Depending on the model and customer requirements, the isolating transformers can be equipped with electronic switch-on attenuation, overvoltage protection and a mains filter.
ADVANTAGES
- Large selection of options
- Low weight
- Short-circuit and overload protection
- Integrated inrush current limiter
- Sturdy aluminium housing
- Equipotential bonding pin according to DIN 42801
- Plug connections according to IEC 60320
- IEC 60601-1 A2:2019/AMD1:2012
ANSI/AAMIES 60601-1:2005/CR/2012
CAN/CSA C22.2 No.60601-1:14 (medical technology) USA and Canada
IEC 60601-1-2:2014 (Partly); EN/ IEC 61000-3-2:2014; EN/ IEC 61000-3-3:2013
| Input voltage | 115 / 230 V |
| Output voltage | 115 / 230 V |
| Nominal power consumption | 300 – 2200 VA |
| Enclosure protection class | IP 20 |
| Weight | 4.5 – 19.0 kg |
| Earth leakage current at 127/254V / 50/60Hz | <300 / 500 µA{{{wpml_tag_37}}} {{{wpml_tag_38}}} {{{wpml_tag_39}}} {{{wpml_tag_40}}}Anzahl der Ausgangssteckdosen{{{wpml_tag_41}}} {{{wpml_tag_42}}}4 - 9 nach IEC 320{{{wpml_tag_43}}} {{{wpml_tag_44}}} {{{wpml_tag_45}}} {{{wpml_tag_46}}}Prüfspannung{{{wpml_tag_47}}} {{{wpml_tag_48}}}4 kVac (zwischen Primär- und Sekundärwicklung){{{wpml_tag_49}}} {{{wpml_tag_50}}} {{{wpml_tag_51}}} {{{wpml_tag_52}}}Max. Umgebungstemperatur{{{wpml_tag_53}}} {{{wpml_tag_54}}}40 °C{{{wpml_tag_55}}} {{{wpml_tag_56}}} {{{wpml_tag_57}}} {{{wpml_tag_58}}}Isolationswiderstand{{{wpml_tag_59}}} {{{wpml_tag_60}}}> 2 MΩ |
| Protective conductor resistance | <0,1 Ω |
All devices have an inrush current limiter (NTC or electronic), potential equalization in accordance with DIN 42801, a primary mains cable and a protective temperature limiter. The devices can be wall, table or floor mounted.
