DESCRIPTION

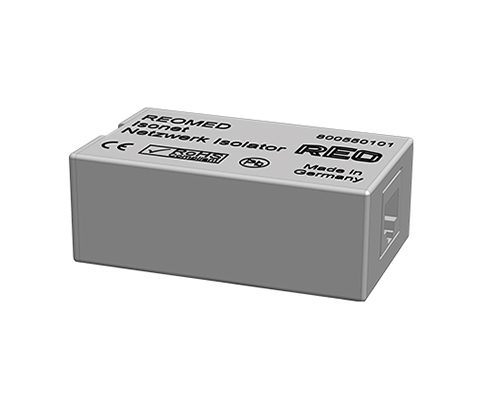

The REOMED Isonet network isolator is used for the electrical isolation of devices in copper wire-bound Ethernet networks. The isolation protects devices and people from the effects of possible electrical voltage spikes on network power cables. Potential equalization currents via the network cable shielding are reliably prevented.
ADVANTAGES
- Protection in both transfer directions
- Interruption of the shield connection of the network cable
- No additional power supply required
- No software installation required
- Maintenance-free
- RoHS compliant
- EN 60950-1
- EN 60601-1
| Isolation voltage | 4 kV |
| Input/ Output connector | RJ45 |
| Supported network protocols | 10BaseT, 100BaseTx, 1000BaseT |
| Insertion loss | -1,3 max dB |
| Return loss | -8 min. dB |
| Protection rating | IP 20 |
| Max. voltage of the connected devices | 250 Vac ms |
| Operating temperature | -10 to +70 °C |
| Storage temperature | -40 to +85 °C |
| Air humidity | 10 to 90 % (without condensation) |
| Housing | Plastic |
| Weight | 45 g |
| Dimensions (HxWxD) [H x B x T] | 25 x 66 x 40 mm |
