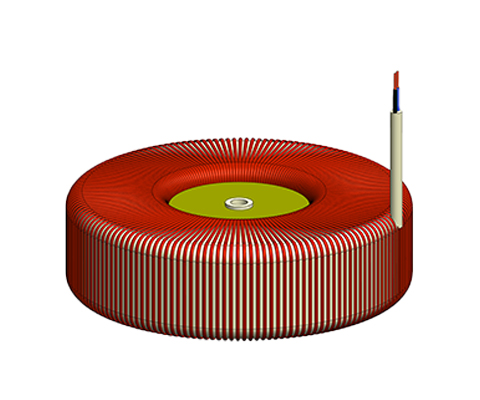

Toroidal fixed transformer with sealed centre hole as a mains, auto, safety or isolation transformer
Description
Toroidal transformers with center potting or a cast foot offer the same advantages as open transformers, while also providing an effective mounting solution. This transformer series eliminates the need for additional mounting hardware, as a central screw is used, ensuring quick installation. A safe distance from the mounting surface is maintained.
Advantages
- Integrated mounting plate with partial sealing
- No humming
- Low magnetic stray field
- Low voltage drop
- High efficiency
- Direct mounting option with just one screw
- Safe distance to the mounting surface
- Connection with wires or stranded wires
- Standards: EN 61558; EN 60601
| Rated power | 10 – 6000 VA |
| Input voltage | 230 V |
| Output voltage | 24 – 690 V |
| Rated current | max. 50 A |
| Frequency range | 50 – 400 Hz |
| Temperature class | T40/E and T40/B |
*In addition to these standard series, we develop special solutions with special voltages and higher outputs according to your requirements. Please get in touch with us.
All data and configurations can be found in our product data sheet.
