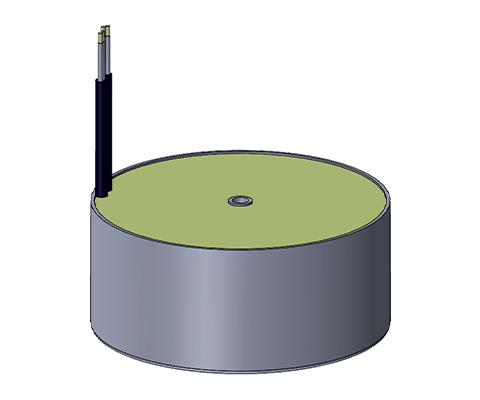

Fully encapsulated toroidal transformer
DESCRIPTION
Fully encapsulated toroidal transformers in a special plastic housing combine all the advantages of the toroidal transformer. The shape of the housing can be adapted exactly to the application. The plastic housing offers optimum mechanical protection against moisture and dust and also provides better thermal conductivity, which leads to increased power density.
The mounting is realized by means of a central screw and thus enables a short assembly time.
The mounting is realized by means of a central screw and thus enables a short assembly time.
ADVANTAGES
- Fully sealed in the plastic housing
- High efficiency
- Very low no-load losses
- No humming
- Low voltage drop
- Protection class IP 54 (for the fully sealed housing)
- Low magnetic stray field
- Optimal mechanical protection
- Protection against humidity and dust
- Even heat distribution
- Connects with wires, strands or clamps according to VBG 4
- Standards: EN 61558; EN 60601
| Rated power | 10 – 6000 VA |
| Input voltage | 230 V |
| Output voltage | 24 – 690 V |
| Rated current | max. 50 A |
| Frequency range | 50 – 400 Hz |
| Temperature class | T40/E and T40/B |
*Special voltages and higher powers on request
