DESCRIPTION

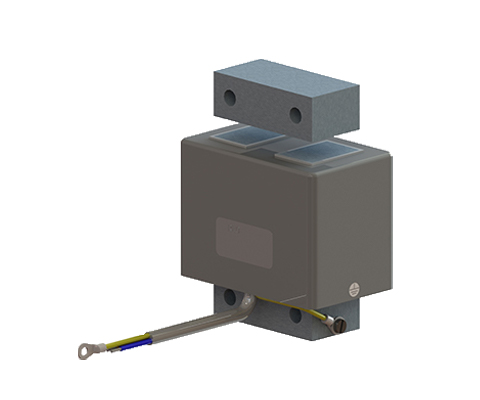

Standard series, fully encapsulated, maximum power of 350 VA at 3000 1/min or 6000 1/min
- Mounting by means of standard round holes, base plate or slotted holes
- Cable exit downwards or sideways
ADVANTAGES
- Optimal size/performance ratio
- Good adjustability
- Safe mounting by means of solid base plate/mountings through the core
- Compact and robust structure
TYPICAL APPLICATIONS
Packaging industry and weighing sector for feeding and sorting processes
Automation process and assembly equipment which utilises electromagnetic drives.
| Types | Maximum rated air gap [mm] [mm] | Power at 3000 1/min [VA] | Rated current = thermal rated current at 230 V [N] | Peak tensile force at nominal air gap [N] | Weight [kg] |
|
|---|---|---|---|---|---|---|
| 6000 1/min [VA] | Magnet | Armature | ||||
| REOVIB WI 111/3 | 2 | 15 | 0,065 | 5 | 0,135 | 0,025 |
| REOVIB WI 111/5 | 1 | 60 | 0,26 | 38 | 0,405 | 0,085 |
| REOVIB WI 111/6 | 2,5 | 70 | 0,3 | 24 | 0,58 | 0,11 |
| REOVIB WI 111/7 | 3 | 140 | 0,6 | 45 | 1,15 | 0,165 |
| REOVIB WI 111/9 | 3 | 350 | 1,5 | 150 | 1,98 | 0,33 |
| Types | a [mm] | b [mm] | c [mm] | d | e | f1 | f2 | f3 | g | h [mm] | i | k | l [mm] | l1 | m | ⌀n | ⌀o | p | ⌀r | s [mm] | ⌀t |
| REVIB WI 111/3 | 44,4 | 26,4 | 30 | 32 | 2 | 42 | 9 | 5 | 30 | 12 | 10 | 4,2 | 22 | 20 | 22 | 4,2 | 4,4 | – | 4,4 | 20 | 3,6 |
| REVIB WI 111/5 | 61,5 | 31,5 | 45 | 50 | 3 | 63 | 14 | 7,5 | 45 | 16 | 15 | 3 | 43 | 35 | 36 | 4,2 | 4,4 | 15 | 5,1 | 28 | 5,1 |
| REVIB WI 111/6 | 64 | 42 | 45 | 50 | 3 | 63 | 14 | 7,5 | 45 | 20,5 | 15 | – | 43 | 35 | 36 | 4,2 | 4,4 | 15 | 5,1 | 28 | 5,1 |
| REVIB WI 111/7 | 78 | 47 | 54 | 60 | 3 | 77 | 17 | 10 | 54 | 21 | 20 | 4,5 | 45 | 40 | 45 | 7 | 5,5 | 20 | 6,5 | 37 | 6,5 |
| REVIB WI 111/9 | 90 | 56 | 66 | 83 | 3 | 88 | 19 | 11 | 66 | 32,5 | 22 | – | 66 | 50 | 66 | 7 | 6,4 | 44 | 8,1 | 44 | 8,1 |
