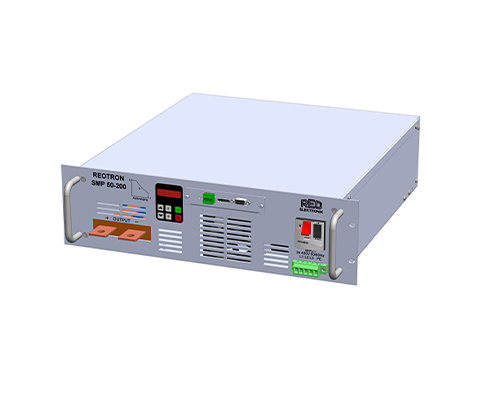

DC Switching Power Supply REOTRON SMP-ESM

19″ slide-in module

DESCRIPTION

The DC power supplies from the REOTRON SMP series are primary switched switching power supplies with galvanic isolation from the input to the output. The devices can be used as voltage, current or power regulators.

Operation

The unit can be operated from an internal display, external control signals of 0…+10V, 0(4)…20mA or optionally by a fieldbus interface such as DeviceNet, ProfiBus, CanBus, EtherCAT, EtherNet/IP and ProfiNet protocols.

Input devices

The device input is designed for connection to a three-phase mains 3 x 400 V, 50/60 Hz. The compliance of EMC standards is guaranteed by an input-sided PFC-mains filter.

Design

The devices have a compact design in a 19 inch rackmount chassis and can be delivered as a installation ready control cabinet version or as a tabletop unit (lab version). The devices are air- or water-cooled.

Connection

The SMP‘s are connected via screw terminals and with cooper terminal buses at high output currents. Like all REO-products, the REOTRON SMP‘s are also available as customized versions.

ADVANTAGES

Very good cos Φ of 0,95

Compact dimensions

Series or parallel connection

Air or water- cooling

Many options of combinations for different requirements with other
REO product ranges

TECHNICAL SPECIFICATION

Type REOTRON SMP-ESM plug-in module

Input voltage 3 x 400 V, +/- 10%, 50/60 Hz

Ripple P-P 100 mV/ 200 mV

Input setpoint 0…+10 V, DC, 0(4)…20mA, potentiometer 10 kOhm internally via the control display

Actual Output 0…+10 V, DC, 0(4)…20mA, internal control over display

Interfaces (Optional) ProfiBus-DP, DeviceNet, CAN-Bus, ProfiNet, EtherNet/IP, EtherCAT

Control accuracy 1% of the nominal value (higher of request)

Release 24 V, DC or contact

Protection Class Cabinet installation IP 20

2 x Status Relays Changer 250 V, 1A

Efficiency > 85%

Cos Φ 0,95

Operating temperature 0… 40° C

Standards EN 50178, EN 61000-6-2, EN 61000-6-4

REO series SMP-ESM 25-40 SMP-ESM 25-100 SMP-ESM 25-200 SMP-ESM 25-300 SMP-ESM 25-400 SMP-ESM 25-500 SMP-ESM 25-600

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…25 0…25 0…25 0…25 0…25 0…25 0…25

Output current [A] 0…40 0…100 0…200 0…300 0…400 0…500 0…600

Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE

REO series SMP-ESM 50-20 SMP-ESM 50-50 SMP-ESM 50-100 SMP-ESM 50-150 SMP-ESM 50-200 SMP-ESM 50-250 SMP-ESM 50-300

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…50 0…50 0…50 0…50 0…50 0…50 0…50

Output current [A] 0…20 0…50 0…100 0…150 0…200 0…250 0…300

Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE

REO series SMP-ESM 80-13 SMP-ESM 80-31 SMP-ESM 80-63 SMP-ESM 80-94 SMP-ESM 80-125 SMP-ESM 80-156 SMP-ESM 80-188

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80

Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188

Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE

REO series SMP-ESM 150-7 SMP-ESM 150-17 SMP-ESM 150-33 SMP-ESM 150-50 SMP-ESM 150-67 SMP-ESM 150-83 SMP-ESM 150-100

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…150 0…150 0…150 0…150 0…150 0…150 0…150

Output current [A] 0…7 0…17 0…33 0…50 0…67 0…83 0…100

Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE

REO series SMP-ESM 250-4 SMP-ESM 250-10 SMP-ESM 250-20 SMP-ESM 250-30 SMP-ESM 250-40 SMP-ESM 250-50 SMP-ESM 250-60

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80

Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188

Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE

REO series SMP-ESM 400-2,5 SMP-ESM 400-6,25 SMP-ESM 400-13 SMP-ESM 400-19 SMP-ESM 400-25 SMP-ESM 400-32 SMP-ESM 400-37,5

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80

Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188

Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE

REO series SMP-ESM 600-2 SMP-ESM 600-4 SMP-ESM 600-8 SMP-ESM 600-13 SMP-ESM 600-17 SMP-ESM 600-21 SMP-ESM 600-25

Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000

Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80

Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188

Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE

* Higher services on request
