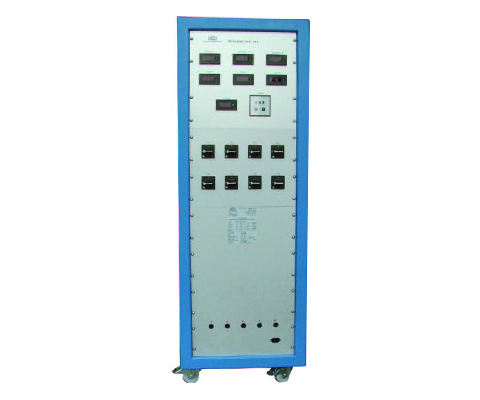

Three-phase resistor loads
Advantages
- Ten fixed levels per plug-in unit for testing contacts, converters and switched-mode power supplies with active current
- Activation and deactivation of the individual stages via rotary switch
- Switching option of the three plug-in units for single and three-phase operation
- Manual switching by means of a wire bridge, which enables a versatile setting of resistances and currents
- Connections via laboratory screw terminals and plug-in connections inside the switch cabinet
Typical Applications
These load units are used for continuous operation and serve for continuous testing of converters and switched-mode power supplies for railway operation.
Technical data*
| REOLOAD 301 / 69 | 230 V | 10 stages each 10 A | 69 kW |
|---|---|---|---|
| REOLOAD 301 / 120 | 400 V | 120 kW | |
| REOLOAD 301 / 201 | 690 V | 207 kW | |
| Protection class | IP 20 | ||
All data and configurations can be found in our product datasheet.
