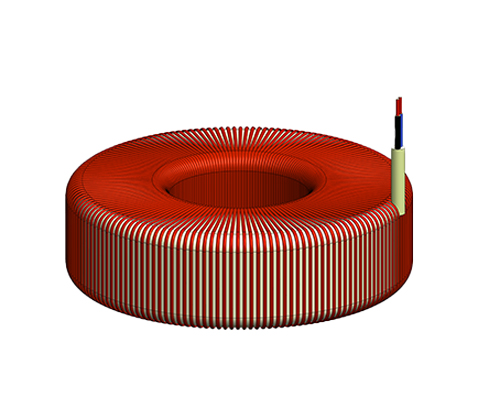

The toroidal fixed transformer in open design as a mains, auto, safety or isolation transformer
DESCRIPTION
Toroidal fixed transformers have significant advantages over conventional transformers: their construction results in up to 50% less volume and low weight. Since the ring cores have almost no air gap, only a very low magnetic stray field is produced and the transformers are almost hum-free. The change in secondary voltage between idling and full load is much smaller than with transformers with a nested core.
ADVANTAGES
- Adaptation of mains voltage to different output voltages
- No humming
- Low magnetic stray field
- Low voltage drop
- Minimum overall weight
- compact construction
- Connection with free wire or stranded wires
- Mounting set available as an accessory
- Standards: EN 61558; EN 60601
| Rated power | 10 – 6000 VA |
| Input voltage | 230 V |
| Output voltage | 24 – 690 V |
| Rated current | max. 50 A |
| Frequency range | 50 – 400 Hz |
| Temperature class | T40/E and T40/B |
*Special voltages and higher powers on request
