Frequency Converter REOVIB MFS 268 HP-HV2

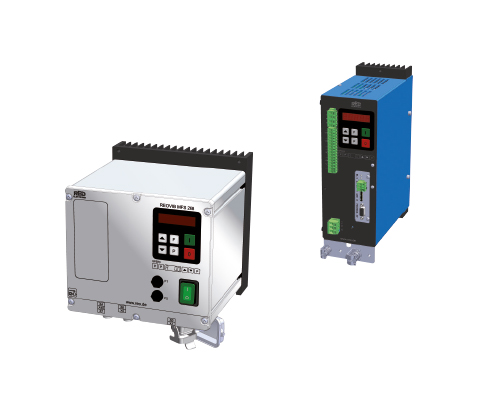

IP54 or IP20 Description High-power version of the REOVIB MFS 268 frequency-controldevice, can be used for mains voltages of 400 V with max.8 or 16 A output current and for mains voltages of 230 V withmax. 12, 16, 32 A output current. Available as IP20 versionsfor installation in control cabinets and also as IP54 standaloneunits for 230 V and 12/16 A. We are also delighted to offeryou a suitable control cabinet system with client specificrequirements. Special designs of the REOVIB MFS 268 HP canalso be implemented if required Advantages Independent of the mains input frequency Able to automatically determine the resonant frequency of the vibratory conveyor system (with additional vibration amplitude sensor) and regulate the vibration amplitude and maintain a constant feed rate irrespective of load or changes in the mechanical system Field bus interfaces: ProfiNet, EtherNet/IP, EtherCAT, CAN-Bus, ProfiBus, DeviceNet Available with UL/CSA approval depending on the type (Optional) Conveyor frequencies are adjustable between 5…300 Hz Mains voltage compensation with constant amplitude All settings can be made using the integrated display Sinusoidal output current Can be used on 400 V mains input User settings can be stored Versions available with fill level/overflow control Versions available in various protection classes and connector options MFS 269 HP is available with an AC output signal for use with permanent-magnet armature TECHNICAL SPECIFICATION Mains input 230/ 400 V Auto detect Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 0 … 205/ 0…360 V Output current max. 16 Vibration frequency 0 … 150 Hz Setpoint value Display, Poti, 0 … 10 V, 0 (4) … 20 mA Status signal Relais changer 250 V, 1 A Ext. Enable 24 V DC, Switch Valve outlet – Sensor supply 24 V DC Setting Umin/ Umax Display Soft start adjustable 0…60 Sec. Fill level / overflow control PNP, 24 V DC (Option) Coarse-/fine control ✓ Vibration amplitude regulation ✓ Resonant frequency search ✓ Selectable cycle operation ✓ Sensor time out monitor ✓ Mains voltage compensation ✓ Field bus interfaces ProfiNet, Ethernet/IP, EtherCat, Profibus-DP, CAN-Bus, DeviceNet, Conformity CE, RoHS Protection class IP20 Data sheet All data and configurations can be found in our product data sheet. Download data sheet Certifications Interfaces
FREQUENCY CONVERTER REOVIB MFS 268 HP-HC2
IP 54 or IP 20, High-power version Description A high-performance version of the frequency control device REOVIB MFS 268, can be used for mains voltages of 230 V with max. 12A or 16A output current. Available as IP20 control cabinet versions and as IP54 housing versions. We also offer a suitable control cabinet system according to customer-led design. Special designs of the REOVIB MFS 268 HP can also be converted. Interfaces ProfiNET, EtherCat, Profi-Bus, EtherNet/IP, Can; DeviceNet Advantages Independent of the mains input frequency Able to automatically determine the resonant frequency of the vibratory conveyor system (with additional vibration amplitude sensor) and regulate the vibration amplitude and maintain a constant feed rate irrespective of load or changes in the mechanical system Field bus interfaces: ProfiNet, EtherNet/IP, EtherCAT, CAN-Bus, ProfiBus, DeviceNet Available with UL/CSA approval depending on the type (Optional) Conveyor frequencies are adjustable between 5…300 Hz Mains voltage compensation with constant vibration amplitude All settings can be made using the integrated display Sinusoidal output current Can be used on 230 V mains input User settings can be stored Versions available with fill level/overflow control Versions available in various protection classes and connector options MFS 269 HP is available with an AC output signal for use with permanent-magnet armature TECHNICAL SPECIFICATIONS Mains input 115/ 230 V Auto detect Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 0 … 100V/ 0…205 V Output current max. max .12 / 16 A Vibration frequency 5 … 150 Hz (Optional 300 Hz) Setpoint value Display, Poti, 0 … 10 V, 0 (4) … 20 mA Status signal Relais changer 250 V, 1 A External release 24 V DC, Switch Valve outlet – Sensor supply 24 V DC Setting Umin/ Umax Display Soft start adjustable 0…60 Sec. Fill level / overflow control PNP, 24 V DC (Option) Coarse-/fine control ✓ Vibration amplitude regulation ✓ Resonant frequency search ✓ Selectable cycle operation ✓ Sensor time out monitor ✓ Mains voltage compensation ✓ Field bus interfaces ProfiNet, Ethernet/IP, EtherCat, Profibus-DP, CAN-Bus, DeviceNet, Conformity CE, RoHS Protection class IP20 Data sheet All data and configurations can be found in our product data sheet. Download data sheet Certifications Interfaces
Frequency Converter REOVIB MFS 268 HP-HC
IP 54 or IP 20, High-power version Description High-performance version of the frequency control device REOVIB MFS 268, can be used for mains voltages of 230 V with max. 32A output current. Available as IP20 control cabinet version.We also offer a suitable control cabinet system according to customer-led design. Special designs of the REOVIB MFS 268 HP can also be converted. Advantages Independent of the mains input frequency Able to automatically determine the resonant frequency of the vibratory conveyor system (with additional vibration amplitude sensor) and regulate the vibration amplitude and maintain a constant feedrate irrespective of load or changes in the mechanical system Field bus interfaces: ProfiNet, EtherNet/IP, EtherCAT, CAN-Bus, ProfiBus, DeviceNet Available with UL/CSA approval depending on the type (Optional) Conveyor frequencies are adjustable between 5…300 Hz Mains voltage compensation with constant vibration amplitude All settings can be made using the integrated display Sinusoidal output current Can be used on 230 V networks User settings can be stored Fill level/overflow control Versions available in various protection classes and connector options MFS 269 HP is availble with AC output signal for use with permanent-magnet armature. TECHNICAL SPECIFICATION Mains input 115/ 230 V Auto detect Mains frequency 50 / 60 Hz +/- 3 Hz Output voltage 0 … 100V/ 0…205 V Output current max. 12/16 A Vibration frequency 5 … 150 Hz Setpoint value Display, Poti, 0 … 10 V, 0 (4) … 20 mA Status signal Relay changer 250 V, 1 A Ext. Enable 24 V DC, Switch Valve output 24 V, 150 mA (IP 54) Sensor supply 24 V DC Setting Umin/ Umax Display Soft start adjustable 0…60 Sec. Fill level/overflow control PNP, 24 V DC Coarse-/fine control ✓ Vibration amplitude regulation ✓ Resonant frequency search ✓ Selectable cycle operation ✓ Sensor time out monitor ✓ Mains voltage compensation ✓ Field bus interfaces ProfiNet, EtherNet/IP, EtherCat, Profibus-DP, CAN-Bus, DeviceNet, Standard Conformity CE, RoHS, UL/CSA (Option) Protection class IP20/IP54 Data sheet All data and configurations can be found in our product data sheet Download datasheet Certifications Interfaces
Three-phase Thyristor Controller Reotron MDW 700
3-phase thyristor power controller DESCRIPTION REOTRON MDW thyristor controllers are used in industrial process engineering, especially in applications where accurate regulation of the load is required.The MDW range can operate as phase-angle or in burst-fire mode as standard and is able to function as voltage, current or power regulators ensuring maximum versatility.REOTRON MDW controllers can be directly connected to the load (Infrared heating) or can also be used for primary control of transformers for load isolation and allow more favourable combinations for operation of voltage/current (resistance heating applications)The REOTRON MDW is a modern microprocessor controlled device with integrated monitoring of voltage and current to ensure that accurate regulation occurs.Communication with the devices can be done using conventional analog interfaces (0…10V,DC or 0(4)…20 mA), potentiometer or field bus systems like DeviceNet, ProfiBus, CanBus, EtherCAT, EtherNet/IP and ProfiNet to allow easy integration into new or existing factory control networks.To provide additional functionality the units also provide 0..+10V,DC analog outputs which are proportional to current and voltage. These can easily be interfaced to external measurement and supervisory systems.The units have a wide variety of user adjustable parameters so that control can be tailored and optimized for the application, for example Current/Voltage Limit and ramp-up and ramp-down times. The REOTRON MDW range is protected to IP20 and is designed to be integrated into control cabinets.They are air-cooled and above 150A have integral cooling fans. In addition to this, the REOTRON MDW-WK are designed for water-cooling and can easily be integrated into new or existing cooling systems. Advantages phase-angle or burst-fire controllers measuring of effective values connection via analog interfaces, potentiometers or field bus systems Air or water- cooling installation device for control cabinets Technical specifications REOTRON MDW 700-10 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 10 A REOTRON MDW 700-25 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 25 A REOTRON MDW 700-50 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 50 A REOTRON MDW 700-80 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 80 A REOTRON MDW 700-110 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 110 A REOTRON MDW 700-150 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 150 A REOTRON MDW 700-200 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 200 A REOTRON MDW 700-300 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 300 A REOTRON MDW 700-115* 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 115 A REOTRON MDW 700-160* 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 160 A REOTRON MDW 700-250* 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 250 A REOTRON MDW 700-350* 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 350 A REOTRON MDW 700-450* 3 x 400 V AC, +/- 10% 3 x 0…400 V 3 x 450 A Load Type Resisive/ Induktive Target Value: Storm, Voltage, Power 0…+10 V, DC 0(4)…20 mA Internal keyboard Interface (optional) Profibus-DP, CAN-Bus, DeviceNet, EtherCAT Release Input 24 V, DC, external contact (potential-free) Status update ready , status update power on Relay, changeover contact Relay, changeover contact Display for effective value : Current/Voltage 0…+10 V, DC Betriebstemperatur 0…+45°C Storage/ Transport temperature -10…+70°C Protection rating IP 20 * with water cooling
Single-phase Thyristor Controller Reotron MEW 700
Single-Phase Thyristor Controller DESCRIPTION REOTRON MEW series, single-phase, microprocessor-based, thyristor-controllers are suitable for resistive or resistive/inductive loads, especially those with a high Rcold / Rwarm coefficient. Status relays indicate unit ready and fault conditions. Depending on the settings, the controller normally operates on the phase-angle principle (standard setting). It can also be used in a burst-fire mode. Phase-angle mode the unit works as a regulator for RMS current, RMS voltage or power. Adjustment is variable.External setpoint signals can be used for controlling current, voltage and power or potentiometers may be used instead. A serial RS232, PROFIBUS-DP field bus interface can be used for remote adjustment. All unit settings can be made through the controller’s front panel, using a LED display and keypad In the proportional regulation. Advantages Operation via LED display and buttons switchable between phase-angle or full-wave cycle operation Integrated semiconductor fuses Current, voltage or power control Interfaces: DeviceNet, ProfiBus, CanBus, EtherCAT, EtherNet / IP and ProfiNet (optional) Actual value feedback: current, voltage or power Technical data* REOTRON MEW 700-10 230 v AC, +/- 10%, 400 V AC, +/- 10% 0…230 V 0…400 V 10 A REOTRON MEW 700-25 230 v AC, +/- 10%, 400 V AC, +/- 10% 0…230 V 0…400 25 A REOTRON MEW 700-50 230 v AC, +/- 10%, 400 V AC, +/- 10% 0…230 V 0…400 50 A REOTRON MEW 700-80 230 v AC, +/- 10%, 400 V AC, +/- 10% 0…230 V 0…400 80 A REOTRON MEW 700-110 230 v AC, +/- 10%, 400 V AC, +/- 10% 0…230 V 0…400 110 A REOTRON MEW 700-150 230 v AC, +/- 10%, 400 V AC, +/- 10% 0…230 V 0…400 150 A REOTRON MEW 700-200 230 v AC, +/- 10%, 400 V AC, +/- 10% 0…230 V 0…400 200 A REOTRON MEW 700-300 230 v AC, +/- 10%, 400 V AC, +/- 10% 0…230 V 0…400 300 A Load Type Resisive/ Induktive Target Value: Storm, Voltage, Power 0…+10 V, DC 0(4)…20 mA Internal keyboard Interface: (Optional) Profibus-DP, CAN-Bus, DeviceNet, ErtherCAT, ErtherNet/IP, ProfiNet Release Input 24 V, DC, external contact (potential-free) Status message ready for operation, Status message power on Relay changeover contact, Relay changeover contact Actual value monitor: Current/voltage 0…+5 V, DC Betriebstemperatur 0…+45°C Storage/ Transport temperature -10…+70°C Protection rating IP 20 *Higher services on reguest
1-phase thyristor controler REOTRON EW 509
Thyristor power regulator Description REOTRON EW 509 is a single-phase thyristor control for currents up to 15 A. The control electronics is free of mains potential. The REOVIB 509 is designed for controlling bowl or linear feeders up to 15 A current rating. The output frequency 50Hz/100Hz (60Hz/120Hz) is selected to suit the feeder. In the regulation circuit there is built-in compensation for mains variations. The feed rate setpoint can be derived from a potentiometer, a voltage signal 0…+10 VDC or a current signal 0…20 mA. The setpoint range can be linearised by means of two trimmers Umin/Umax. Furthermore, an enable input is provided for start/stop operation and there is a control input for use with a track control module (REOVIB 513). Mains fluctuations are compensated by an internal control stage. Fixings are provided for DIN rail mounting according to EN 50022-35. Advantages Mains voltage compensation Setpoint via potentiometer 0…+10 V, 0(4)…20 mA Enable input 24 V, DC or contact Snap-on mounting for 35 mm DIN rail Technical specifications Input voltage : 230 / 400 V + 6% / – 10% Output voltage : 0…Ue V Output Current : 15 A Input voltage switchable Input voltage switchable [V] V Input voltage 230V, +6% / – 10%, 50/60 Hz, 400V, +6% / – 10%, 50/60 Hz Output voltage 0…230 V, 0…400 V Output current 15 A Setpoint external with 0…+ 10 V, DC 0(4)…20mA, Potentiometer 10 kOhm Release 24 V, DC or contact Operating temperature 0…+45° C Protection IP20 Dimensions in mm Type A[mm] B[mm] C[mm] D[mm] REOTRON EW 509 150 74 112 100
DC-Power supply REOTRON SMP-LM
Benchtop DESCRIPTION The DC power supplies from the REOTRON SMP series are primary switched switching power supplies with galvanic isolation from the input to the output. The devices can be used as voltage, current or power regulators. Operation The unit can be operated from an internal display, external control signals of 0…+10V, 0(4)…20mA or optionally by a fieldbus interface such as DeviceNet, ProfiBus, CanBus, EtherCAT, EtherNet/IP and ProfiNet protocols. Input devices The device input is designed for connection to a three-phase mains 3 x 400 V, 50/60 Hz. The compliance of EMC standards is guaranteed by an input-sided PFC-mains filter. Design The devices have a compact design in a 19 inch rackmount chassis and can be delivered as a installation ready control cabinet version or as a tabletop unit (lab version). The devices are air- or water-cooled. Connection The SMP‘s are connected via screw terminals and with cooper terminal buses at high output currents. Like all REO-products, the REOTRON SMP‘s are also available as customized versions. ADVANTAGES Very good cos Φ of 0,95 Compact dimensions Series or parallel connection Air or water- cooling Many options of combinations for different requirements with otherREO product ranges TECHNICAL SPECIFICATION Type REOTRON SMP-ESM plug-in module Input voltage 3 x 400 V, +/- 10%, 50/60 Hz Ripple P-P 100 mV/ 200 mV Setpoint Input 0…+10 V, DC, 0(4)…20mA, Potentiometer 10 kOhm internally via the control display Actual Value Output 0…+10 V, DC, 0(4)…20mA, internally via the control display Interfaces (Option) ProfiBus-DP, DeviceNet, CAN-Bus, ProfiNet, EtherNet/IP, EtherCAT Control Accuracy 1% of the nominal value (higher on reguest) Release 24 V, DC or contact Protection Class Control cabinet installation IP 20 2 x Status Relays Changeover 250 V, 1A Efficiency > 85% Cos Φ 0,95 Operating Temperature 0… 40° C Standards EN 50178, EN 61000-6-2, EN 61000-6-4 REO series SMP-LM 25-40 SMP-LM 25-100 SMP-LM 25-200 SMP-LM 25-300 SMP-LM 25-400 SMP-LM 25-500 SMP-LM 25-600 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…25 0…25 0…25 0…25 0…25 0…25 0…25 Output current [A] 0…40 0…100 0…200 0…300 0…400 0…500 0…600 Dimensions (WxDxH) [BxTxHE] 482×406/4HE 434×465/4HE 434×465/4HE 434×465/4HE 434×465/6HE 434×465/6HE 434×465/6HE Output power [W]0…10000…25000…50000…75000…100000…125000…15000 REO series SMP-LM 50-20 SMP-LM 50-50 SMP-LM 50-100 SMP-LM 50-150 SMP-LM 50-200 SMP-LM 50-250 SMP-LM 50-300 Output voltage [V] 0…50 0…50 0…50 0…50 0…50 0…50 0…50 Output current [A] 0…20 0…50 0…100 0…150 0…200 0…250 0…300 Dimensions (WxDxH) [BxTxHE] 434×465/4HE 434×465/4HE 434×465/4HE 434×465/4HE 434×465/6HE 434×465/6HE 434×465/6HE REO series SMP-LM 80-13 SMP-LM 80-31 SMP-LM 80-63 SMP-LM 80-94 SMP-LM 80-125 SMP-LM 80-156 SMP-LM 80-188 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80 Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188 Dimensions (WxDxH) [BxTxHE] 434×465/4HE 434×465/4HE 434×465/4HE 434×465/4HE 434×465/6HE 434×465/6HE 434×465/6HE REO series SMP-LM 150-7 SMP-LM 150-17 SMP-LM 150-33 SMP-LM 150-50 SMP-LM 150-67 SMP-LM 150-83 SMP-LM 150-100 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80 Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188 Dimensions (WxDxH) [BxTxHE] 434×465/4HE 434×465/4HE 434×465/4HE 434×465/4HE 434×465/6HE 434×465/6HE 434×465/6HE REO series SMP-LM 250-40 SMP-LM 250-10 SMP-LM 250-20 SMP-LM 250-30 SMP-LM 250-40 SMP-LM 250-50 SMP-LM 250-60 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…250 0…250 0…250 0…250 0…250 0…250 0…250 Output current [A] 0…4 0…10 0…20 0…30 0…40 0…50 0…60 Dimensions (WxDxH) [BxTxHE] 434×465/4HE 434×465/4HE 434×465/4HE 434×465/4HE 434×465/6HE 434×465/6HE 434×465/6HE REO series SMP-LM 400-2,5 SMP-LM 400-6,25 SMP-LM 400-12,5 SMP-LM 400-18,75 SMP-LM 400-25 SMP-LM 400-31,25 SMP-LM 400-37,5 Output power [W] 0…1000 0…2800 0…5200 0…7600 0…10000 0…12800 0…15000 Output voltage [V] 0…400 0…400 0…400 0…400 0…400 0…400 0…400 Output current [A] 0…2,5 0…6,25 0…13 0…19 0…25 0…32 0…37,5 Dimensions (WxDxH) [BxTxHE] 434×465/4HE 434×465/4HE 434×465/4HE 434×465/4HE 434×465/6HE 434×465/6HE 434×465/6HE REO series SMP-LM 600-2 SMP-LM 600-4 SMP-LM 600-8 SMP-LM 600-13 SMP-LM 600-17 SMP-LM 600-21 SMP-LM 600-25 Output power [W] 0…1200 0…2400 0…4800 0…7800 0…10200 0…12600 0…15000 Output voltage [V] 0…600 0…600 0…600 0…600 0…600 0…600 0…600 Output current [A] 0…2 0…4 0…8 0…13 0…17 0…21 0…25 Dimensions (WxDxH) [BxTxHE] 434×465/4HE 434×465/4HE 434×465/4HE 434×465/4HE 434×465/4HE 434×465/4HE 434×465/4HE
DC-Power supply REOTRON SMP-SMB
Installation – Mounted on mounting wall DESCRIPTION The DC power supplies from the REOTRON SMP series are primary switched switching power supplies with galvanic isolation from the input to the output. The devices can be used as voltage, current or power regulators. Operation The unit can be operated from an internal display, external control signals of 0…+10V, 0(4)…20mA or optionally by a fieldbus interface such as DeviceNet, ProfiBus, CanBus, EtherCAT, EtherNet/IP and ProfiNet protocols. Input devices The device input is designed for connection to a three-phase mains 3 x 400 V, 50/60 Hz. The compliance of EMC standards is guaranteed by an input-sided PFC-mains filter. Design The devices have a compact design in a 19 inch rackmount chassis and can be delivered as a installation ready control cabinet version or as a tabletop unit (lab version). The devices are air- or water-cooled. Connection The SMP‘s are connected via screw terminals and with cooper terminal buses at high output currents. Like all REO-products, the REOTRON SMP‘s are also available as customized versions. ADVANTAGES Very good cos Φ of 0,95 Compact dimensions Series or parallel connection Air or water- cooling Many options of combinations for different requirements with otherREO product ranges TECHNICAL SPECIFICATION Type REOTRON SMP-SMB control cabinet module Input voltage 3x400V, +/- 10%, 50/60 Hz Ripple P-P 100 mV/ 200 mV Setpoint Input 0…+10 V, DC, 0(4)…20mA, Potentiometer 10 kOhm internally via the control display Actual value output 0…+10 V, DC, 0(4)…20mA, internally via operating display Interfaces (Option) ProfiBus-DP, DeviceNet, CAN-Bus, ProfiNet, EtherNet/IP, EtherCAT Control Accuracy 1% of the nominal value (higher on reguest) Release 24 V, DC or contact Protection Class Control cabinet installation IP 20 2 x Status Relays Changeover 250 V, 1A Efficiency > 85% Cos Φ 0,95 Operating Temperature 0… 40° C Standards EN 50178, EN 61000-6-2, EN 61000-6-4 Size Width Height Depth Small(S) 300 400 230 Medium (M) 330 450 250 Large (L) 400 480 300 Extra large (XL) 600 600 300 REO series Small(S) SMP-SMB 25-40 Small(S) SMP-SMB 25-100 Medium(M) SMP-SMB 25-200 Medium(M) SMP-SMB 25-300 Large (L) SMP-SMB 25-400 Large (L) SMP-SMB 25-500 Large (L) SMP-SMB 25-600 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…25 0…25 0…25 0…25 0…25 0…25 0…25 Output current [A] 0…40 0…100 0…200 0…300 0…400 0…500 0…600 REO series Small(S) SMP-SMB 50-20 Small(S) SMP-SMB 50-50 Medium(M) SMP-SMB 50-100 Medium(M) SMP-SMB 50-150 Large(L) SMP-SMB 50-200 Large(L) SMP-SMB 50-250 Large(L) SMP-SMB 50-300 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…50 0…50 0…50 0…50 0…50 0…50 0…50 Output current [A] 0…20 0…50 0…100 0…150 0…200 0…250 0…300 REO series Small(S) SMP-SMB 80-13 Small(S) SMP-SMB 80-31 Medium(M) SMP-SMB 80-63 Medium(M SMP-SMB 80-94 Large(L) SMP-SMB 80-125 Large(L) SMP-SMB 80-156 Large(L) SMP-SMB 80-188 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80 Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188 REO series Small(S) SMP-SMB 150-7 Small(S) SMP-SMB 150-17 Medium(M) SMP-SMB 150-33 Medium(M) SMP-SMB 150-50 Large(L) SMP-SMB 150-67 Large(L) SMP-SMB 150-83 Large(L) SMP-SMB 150-100 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…150 0…150 0…150 0…150 0…150 0…150 0…150 Output current [A] 0…7 0…17 0…33 0…50 0…67 0…83 0…100 REO series Small(S) SMP-SMB 250-4 Small(S) SMP-SMB 250-10 Medium(M) SMP-SMB 250-20 Medium(M) SMP-SMB 250-30 Large(L) SMP-SMB 250-40 Large(L) SMP-SMB 250-50 Large(L) SMP-SMB 250-60 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…250 0…250 0…250 0…250 0…250 0…250 0…250 Output current [A] 0…4 0…10 0…20 0…30 0…40 0…50 0…60 REO series Small(S) SMP-SMB 400-2,5 Small(S) SMP-SMB 400-6,25 Medium(M) SMP-SMB 400-12,5 Medium(M) SMP-SMB 400-18,75 Large(L) SMP-SMB 400-25 Large(L) SMP-SMB 400-31,25 Large(L) SMP-SMB 400-37,5 Output power [W] 0…1000 0…2800 0…5200 0…7600 0…10000 0…12800 0…15000 Output voltage [V] 0…400 0…400 0…400 0…400 0…400 0…400 0…400 Output current [A] 0…2,5 0…6,25 0…13 0…19 0…25 0…32 0…37,5 REO series Small(S) SMP-SMB 600-2 Small(S) SMP-SMB 600-4 Medium(M) SMP-SMB 600-8 Medium(M) SMP-SMB 600-13 Large(L) SMP-SMB 600-17 Large(L) SMP-SMB 600-21 Large(L) SMP-SMB 600-25 Output power [W] 0…1200 0…2400 0…4800 0…7800 0…10200 0…12600 0…15000 Output voltage [V] 0…600 0…600 0…600 0…600 0…600 0…600 0…600 Output current [A] 0…2 0…4 0…8 0…13 0…17 0…21 0…25 * Higher services on request
DC-Power supply REOTRON SMP-KMB

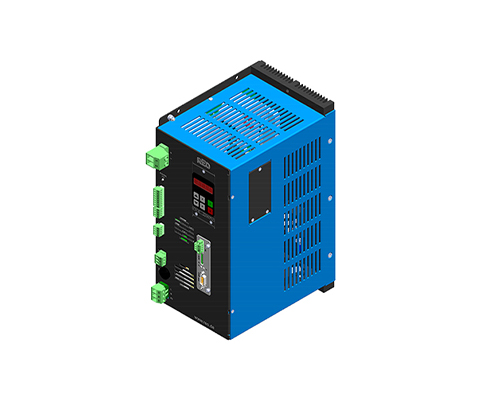

Installation – Mounted on mounting wall DESCRIPTION The DC power supplies from the REOTRON SMP series are primary switched switching power supplies with galvanic isolation from the input to the output. The devices can be used as voltage, current or power regulators. Operation The unit can be operated from an internal display, external control signals of 0…+10V, 0(4)…20mA or optionally by a fieldbus interface such as DeviceNet, ProfiBus, CanBus, EtherCAT, EtherNet/IP and ProfiNet protocols. Input devices The device input is designed for connection to a three-phase mains 3 x 400 V, 50/60 Hz. The compliance of EMC standards is guaranteed by an input-sided PFC-mains filter. Design The devices have a compact design in a 19 inch rackmount chassis and can be delivered as a installation ready control cabinet version or as a tabletop unit (lab version). The devices are air- or water-cooled. Connection The SMP‘s are connected via screw terminals and with cooper terminal buses at high output currents. Like all REO-products, the REOTRON SMP‘s are also available as customized versions. ADVANTAGES Very good cos Φ of 0,95 Compact dimensions Series or parallel connection Air or water- cooling Many options of combinations for different requirements with otherREO product ranges TECHNICAL SPECIFICATION Type REOTRON SMP-KMB Contact Module Input voltage 230 V, +/- 10%, 50/60 Hz, Ripple P-P 100 mV/ 200 mV Setpoint Input 0…+10 V, DC, 0(4)…20mA, Potentiometer 10 kOhm internally via the control display Actual Value Output 0…+10 V, DC, 0(4)…20mA, internally via the control display Interfaces (Option) ProfiBus-DP, DeviceNet, CAN-Bus, ProfiNet, EtherNet/IP, EtherCAT Control Accuracy 1% of the nominal value (higher on reguest) Release 24 V, DC or contact Protection Class Control cabinet installation IP 20 2 x Status Relays Changeover 250 V, 1A Efficiency > 85% Cos Φ 0,95 Operating Temperature 0… 40° C Standards EN 50178, EN 61000-6-2, EN 61000-6-4 REO Series SMP-KMB 10-10 SMP-KMB 10-20 SMP-KMB 10-30 SMP-KMB 10-40 Output power [W] 0…100 0…200 0…300 0…400 Output voltage [V] 0…10 0…10 0…10 0…10 Output current [A] 0…10 0…20 0…30 0…40 Dimensions (WxDxH) [BxTxHE] 154x330x217,5 154x330x217,5 154x330x217,5 154x330x217,5 REO Series SMP-KMB 20-10 SMP-KMB 20-20 SMP-KMB 20-30 SMP-KMB 20-40 Output Power [W] 0…200 0…400 0…600 0…800 Output voltage [V] 0…20 0…20 0…20 0…20 Output current [A] 0…10 0…20 0…30 0…40 Dimensions (WxDxH) [BxTxHE] 154x330x217,5 154x330x217,5 154x330x217,5 154x330x217,5 REO series SMP-KMB 30-10 SMP-KMB 30-20 SMP-KMB 30-30 SMP-KMB 30-40 SMP-KMB 40-10 SMP-KMB 40-20 Output power [W] 0…300 0…600 0…900 0…1200 0…400 0…800 Output voltage [V] 0…30 0…30 0…30 0…30 0…40 0…40 Output current [A] 0…10 0…20 0…30 0…40 0…10 0…20 Dimensions (WxDxH) [BxTxHE] 154x330x217,5 154x330x217,5 154x330x217,5 154x330x217,5 154x330x217,5 154x330x217,5 REO Series SMP-KMB 50-10 SMP-KMB 50-20 SMP-KMB 60-10 Output power [W] 0…500 0…1000 0…600 Output voltage [V] 0…50 0…50 0…60 Output current [A] 0…10 0…20 0…10 Dimensions [BxTxHE] 154x330x217.5 154x330x217.5 154x330x217.5 * Higher services on request
DC Switching Power Supply REOTRON SMP-ESM
19″ slide-in module DESCRIPTION The DC power supplies from the REOTRON SMP series are primary switched switching power supplies with galvanic isolation from the input to the output. The devices can be used as voltage, current or power regulators. Operation The unit can be operated from an internal display, external control signals of 0…+10V, 0(4)…20mA or optionally by a fieldbus interface such as DeviceNet, ProfiBus, CanBus, EtherCAT, EtherNet/IP and ProfiNet protocols. Input devices The device input is designed for connection to a three-phase mains 3 x 400 V, 50/60 Hz. The compliance of EMC standards is guaranteed by an input-sided PFC-mains filter. Design The devices have a compact design in a 19 inch rackmount chassis and can be delivered as a installation ready control cabinet version or as a tabletop unit (lab version). The devices are air- or water-cooled. Connection The SMP‘s are connected via screw terminals and with cooper terminal buses at high output currents. Like all REO-products, the REOTRON SMP‘s are also available as customized versions. ADVANTAGES Very good cos Φ of 0,95 Compact dimensions Series or parallel connection Air or water- cooling Many options of combinations for different requirements with otherREO product ranges TECHNICAL SPECIFICATION Type REOTRON SMP-ESM plug-in module Input voltage 3 x 400 V, +/- 10%, 50/60 Hz Ripple P-P 100 mV/ 200 mV Input setpoint 0…+10 V, DC, 0(4)…20mA, potentiometer 10 kOhm internally via the control display Actual Output 0…+10 V, DC, 0(4)…20mA, internal control over display Interfaces (Optional) ProfiBus-DP, DeviceNet, CAN-Bus, ProfiNet, EtherNet/IP, EtherCAT Control accuracy 1% of the nominal value (higher of request) Release 24 V, DC or contact Protection Class Cabinet installation IP 20 2 x Status Relays Changer 250 V, 1A Efficiency > 85% Cos Φ 0,95 Operating temperature 0… 40° C Standards EN 50178, EN 61000-6-2, EN 61000-6-4 REO series SMP-ESM 25-40 SMP-ESM 25-100 SMP-ESM 25-200 SMP-ESM 25-300 SMP-ESM 25-400 SMP-ESM 25-500 SMP-ESM 25-600 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…25 0…25 0…25 0…25 0…25 0…25 0…25 Output current [A] 0…40 0…100 0…200 0…300 0…400 0…500 0…600 Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE REO series SMP-ESM 50-20 SMP-ESM 50-50 SMP-ESM 50-100 SMP-ESM 50-150 SMP-ESM 50-200 SMP-ESM 50-250 SMP-ESM 50-300 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…50 0…50 0…50 0…50 0…50 0…50 0…50 Output current [A] 0…20 0…50 0…100 0…150 0…200 0…250 0…300 Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE REO series SMP-ESM 80-13 SMP-ESM 80-31 SMP-ESM 80-63 SMP-ESM 80-94 SMP-ESM 80-125 SMP-ESM 80-156 SMP-ESM 80-188 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80 Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188 Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE REO series SMP-ESM 150-7 SMP-ESM 150-17 SMP-ESM 150-33 SMP-ESM 150-50 SMP-ESM 150-67 SMP-ESM 150-83 SMP-ESM 150-100 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…150 0…150 0…150 0…150 0…150 0…150 0…150 Output current [A] 0…7 0…17 0…33 0…50 0…67 0…83 0…100 Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE REO series SMP-ESM 250-4 SMP-ESM 250-10 SMP-ESM 250-20 SMP-ESM 250-30 SMP-ESM 250-40 SMP-ESM 250-50 SMP-ESM 250-60 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80 Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188 Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE REO series SMP-ESM 400-2,5 SMP-ESM 400-6,25 SMP-ESM 400-13 SMP-ESM 400-19 SMP-ESM 400-25 SMP-ESM 400-32 SMP-ESM 400-37,5 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80 Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188 Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE REO series SMP-ESM 600-2 SMP-ESM 600-4 SMP-ESM 600-8 SMP-ESM 600-13 SMP-ESM 600-17 SMP-ESM 600-21 SMP-ESM 600-25 Output power [W] 0…1000 0…2500 0…5000 0…7500 0…10000 0…12500 0…15000 Output voltage [V] 0…80 0…80 0…80 0…80 0…80 0…80 0…80 Output current [A] 0…13 0…31 0…63 0…94 0…125 0…156 0…188 Dimensions (WxDxH) [BxTxHE] 482×406/3HE 482×406/3HE 482×406/3HE 482×406/3HE 482×406/6HE 482×406/6HE 482×406/6HE * Higher services on request
